Headlamp Washer System, Checking Washer Nozzle Adjustment
CAUTION:
The washer nozzles can be checked for functionality, but they cannot be adjusted.
Nozzle Adjustment, Checking
-- Turn on the low beam.
-- Operate the windshield washer system.
Headlamps are washed, if windshield wiper lever is held at least 1.5 seconds in "wiping position"

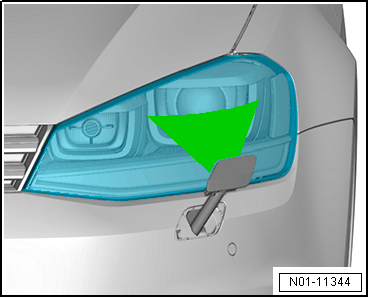

The spray must hit the center of the headlamp glass.
If the spray pattern differs from the specification, perform a repair procedure.
NOTE:
The test pattern is also used for vehicles with halogen headlamps.
