Engine Speed Sensor -G28-, Removing And Installing: Removing

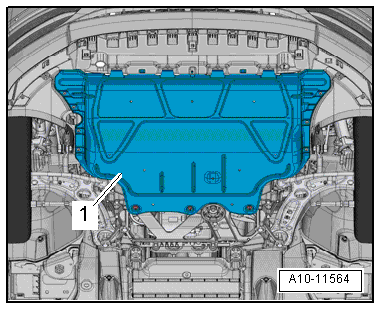

-- Remove the noise insulation -1-. Refer to OVERVIEW - NOISE INSULATION .

Fig 1: Locating Noise Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

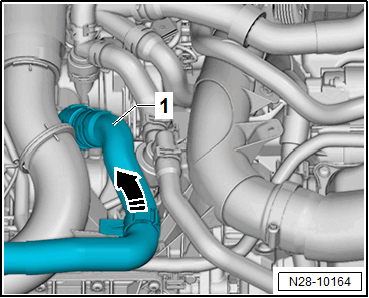

-- Disconnect the coolant hose -1- from the charge air pipe and push upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

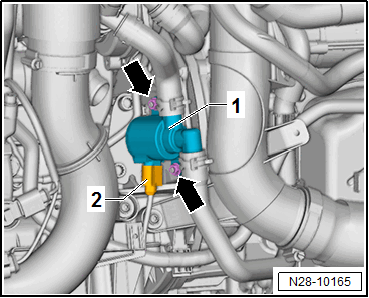

Vehicles with Coolant Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the nuts -arrows- and push the coolant valve -1- to the side.

All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

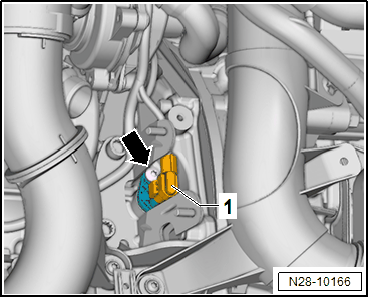

-- Disconnect the connector -1- on the Engine Speed Sensor -G28-.

-- Remove the bolt -arrow- and the Engine Speed Sensor -G28-.
