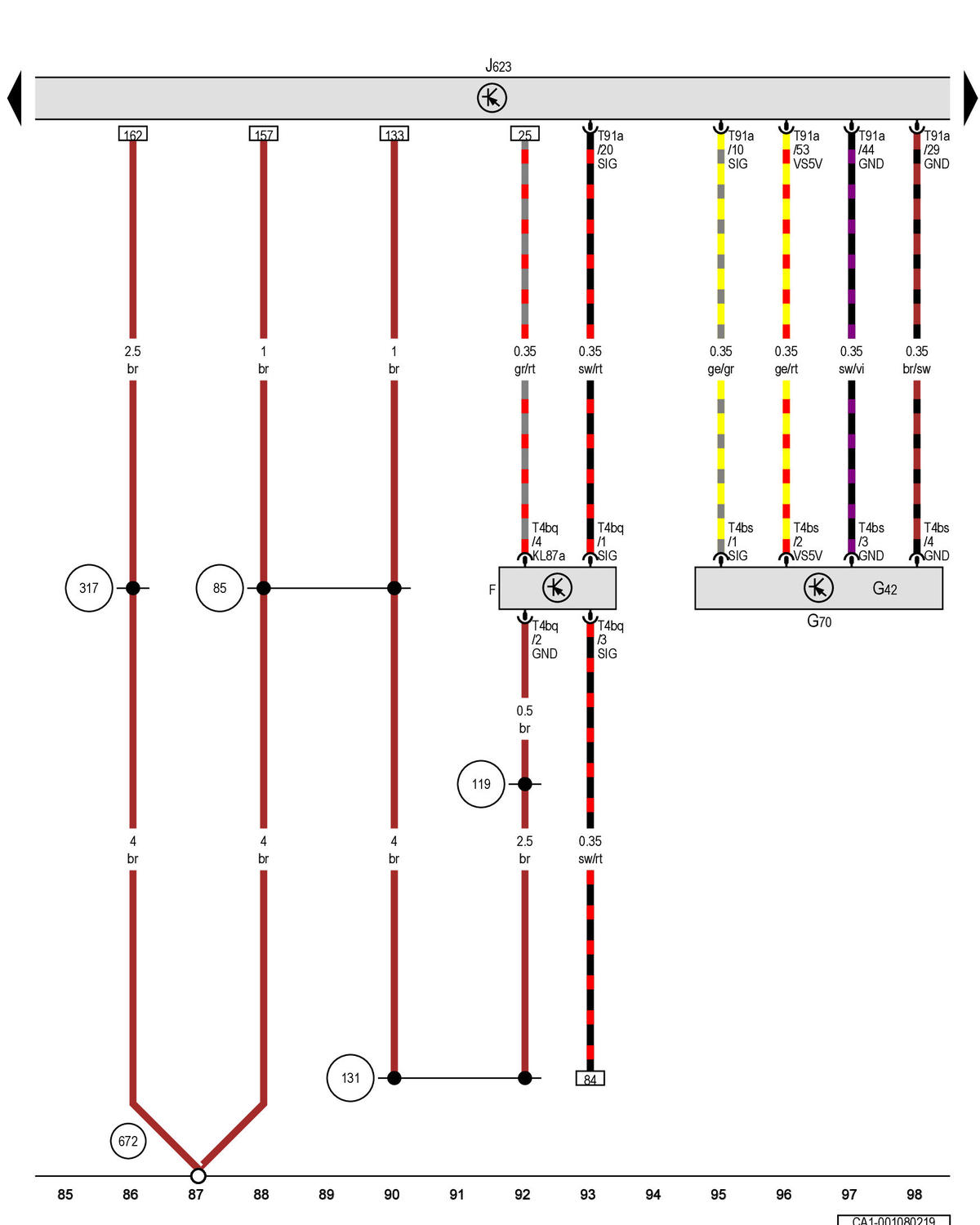

Brake Lamp Switch, Mass Airflow Sensor, Engine/Motor Control Module: Notes

GWWCA1-001080219Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
