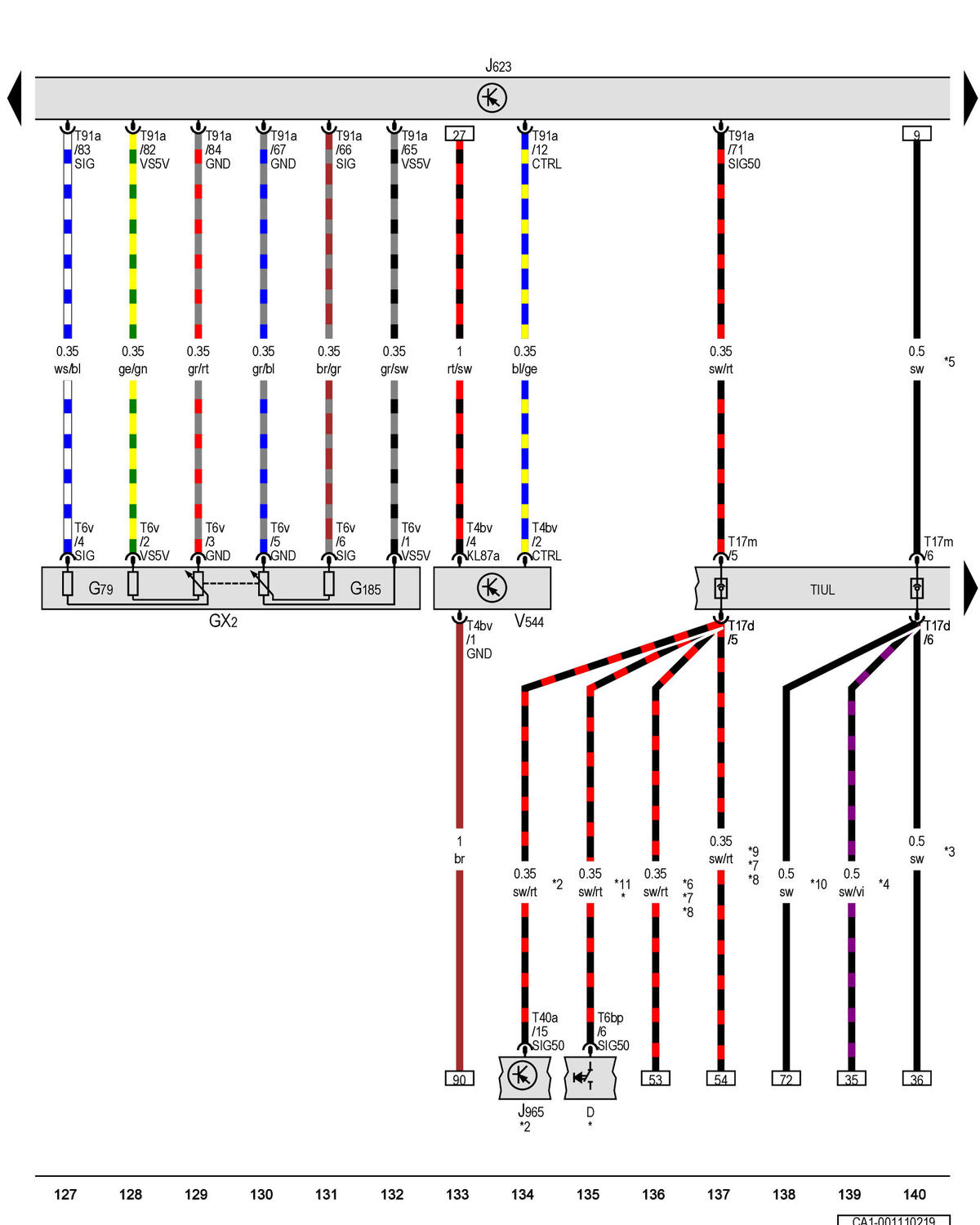

Ignition/Starter Switch, Accelerator Pedal Module, Engine/Motor Control Module, Access/Start System Interface, Radiator Shutter Motor: Notes

GWWCA1-001110219Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
