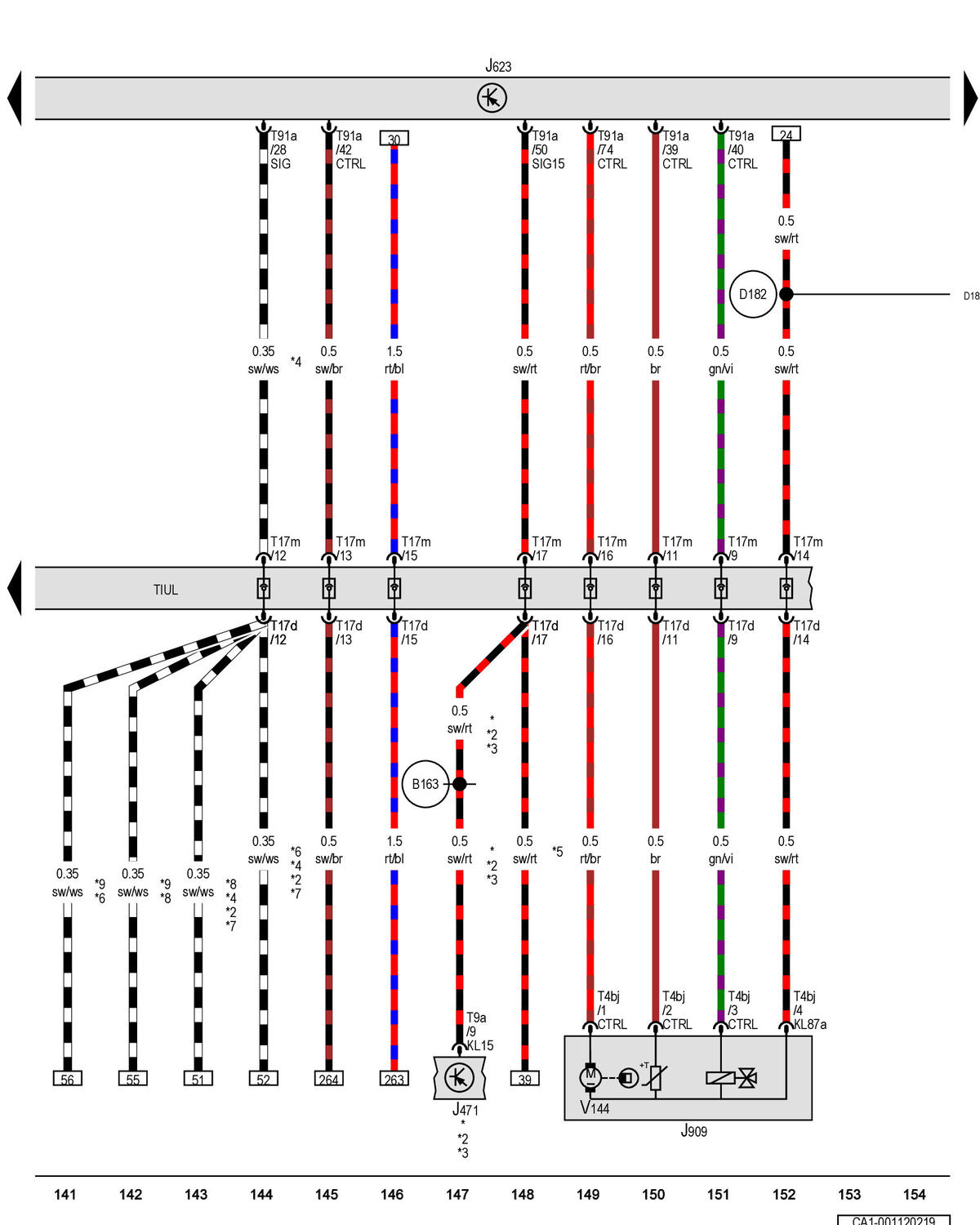

Remote Start System Relay, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWWCA1-001120219Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
