Steering Column, Removing And Installing: Installing

Install in reverse order of removal while noting the following:

-- Engage the steering column -1- in the assembly aids on the mounting bracket at the bottom -2- and at the top -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

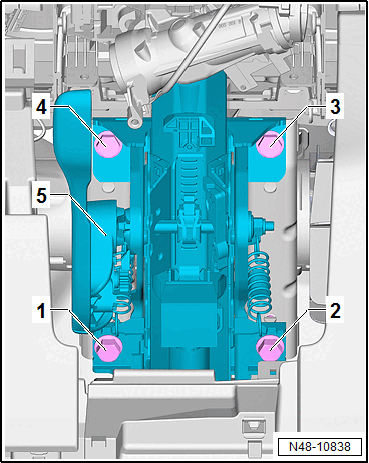

-- Align the steering column -5- to the mounting bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

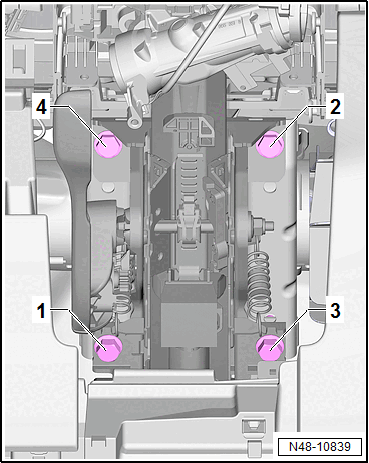

-- Install the bolts -1 through 4- hand-tight.

-- Tighten the bolts -1 through 4- one after the other to the tightening specification.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The flat side of the steering column -1- must be positioned on the flat side of the steering gear -2-. At the same time, the opening on the steering gear must align precisely with the hole for the bolt -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is the reverse order of removal. Note the following:

-- Perform a basic setting on the Steering Angle Sensor -G85- using the Vehicle Diagnostic Tester.
