Gearshift Cable And Selector Cable, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

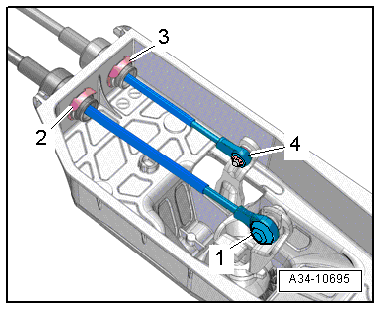

Fig 1: Identifying Shift Lever And Selector Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Secure the shift cable and selector cable on the shift housing with lock washers -2 and 3-.

-- Install the shift cable -1- on the gearshift lever and selector cable -4- on the selector lever inside the shift housing.

-- Remove base plate -arrows-. Refer to SELECTOR MECHANISM, DISASSEMBLING AND ASSEMBLING .

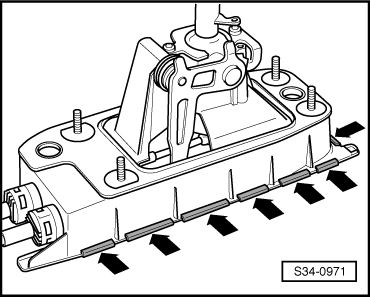

Fig 2: Bend The Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the gearshift mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .

-- Adjust the gearshift mechanism. Refer to SELECTOR MECHANISM, ADJUSTING .
