Digital Sound System Control Module -J525-

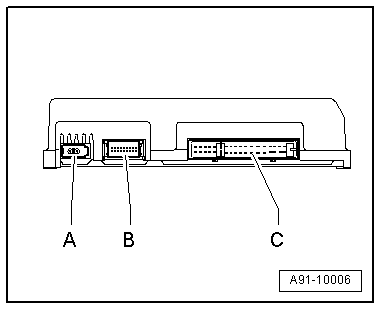

Fig 1: Digital Sound System Control Module -J525-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - MOST bus

B - 18-Pin Connector

C - 32-Pin Connector

A - MOST Bus

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Optical MOST bus fiber-optic cable, opt. 1
Optical MOST bus fiber-optic cable, opt. 2

18-Pin Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Microphone 1, positive
Microphone 1, shield
Not Assigned
Right Rear Audio (+), only RCD 550
Left Rear Audio (+), only RCD 550
Right Front Audio (+), only RCD 550
Left Front Audio (+), only RCD 550
Not Assigned
CAN Bus Infotainment (CAN-High), only RCD 550
Microphone 1, negative
Not Assigned
Not Assigned
Right Rear Audio (-), only RCD 550
Left Rear Audio (-), only RCD 550
Right Front Audio (-), only RCD 550
Left Front Audio (-), only RCD 550
Ground/Ring break diagnosis (CAN-Bus Ground on RCD 550, Ring break diagnosis on RNS 850)
CAN Bus Infotainment (CAN-Low), only RCD 550

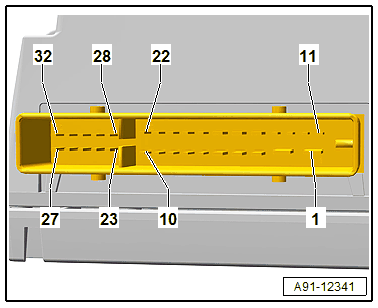

32-Pin Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Power supply, positive, terminal 30
Power Supply, Negative, Terminal 31
Left Rear Treble Speaker, Positive
Right Rear Treble Speaker, Positive
Mid-range center speaker, positive
Left Front Mid-Range Speaker, Positive
Right Front Mid-Range Speaker, Positive
Left Front Treble Speaker, Positive
Right Front Treble Speaker, Positive
Right Rear Treble Speaker, Positive
Treble center speaker, negative
Treble center speaker, positive
Not Assigned
Not Assigned
Left Rear Treble Speaker, Negative
Right Rear Treble Speaker, Negative
Mid-range center speaker, negative
Left Front Mid-Range Speaker, Negative
Right Front Bass Speaker, Negative
Left Front Treble Speaker, Negative
Right Front Bass Speaker, Negative
Right Rear Treble Speaker, Negative
Left Rear Treble Speaker, Positive
Left Front Bass Speaker, Negative
Left Front Bass Speaker, Positive
Not Assigned
Not Assigned
Left Rear Bass Speaker, Negative
Right Front Bass Speaker, Positive
Right Front Bass Speaker, Negative
Not Assigned
Not Assigned
