Digital Sound System Control Module, Removing And Installing: Installing:

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Vehicles with rear heater and A/C unit

-- Reinstall the water drain immediately after installing the rear heater and A/C unit. Perform the following work:

-- Remove the storage tray inside the luggage compartment floor panel -arrow-.

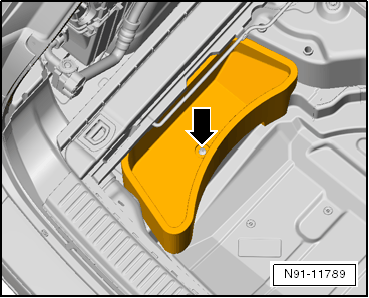

Fig 1: Identifying Storage Tray

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bend the noise insulation foam block to the side in direction of -arrow-.

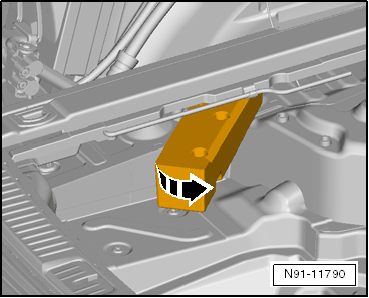

Fig 2: Bend The Noise Insulation Foam Block To The Side In -Direction Of Arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Reach through the opening and connect the hose -arrow- to the rear heater and A/C unit.

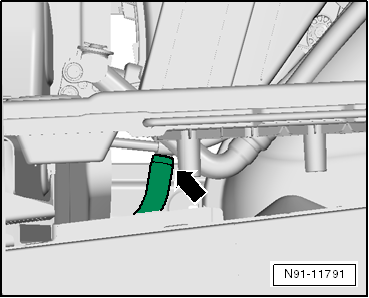

Fig 3: Connect The Hose -Arrow- To The Heater/Air Conditioner Housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continued for all vehicles

When replacing radio navigation system control modules, it is necessary to adapt the replaced control modules to the vehicle. If this is not performed, component protection is activated for these control modules so that they do not work or only on a highly limited basis.

Adapt the control module. Refer to ANTI-THEFT COMPONENT PROTECTION .
