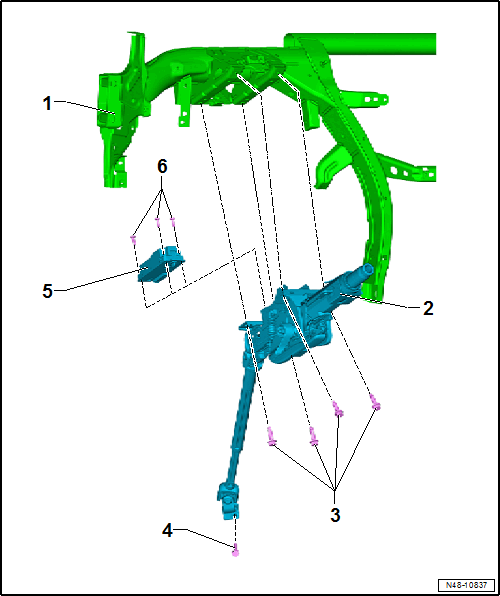

Overview - Steering Column, Version 1
- Instrument Panel Crossmember
- Steering Column
- Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- The steering column must be engaged on the instrument panel central tube mounting bracket when installing (assembly aid).
- There are different versions. Refer to the appropriate service information.
- Bolt
- 20 Nm
- Replace after removing.
- Note the tightening sequence. Refer to Installing => Tighten the bolts -1 through 4- one after the other to the tightening specification. .
- Bolt
- 20 Nm +90°
- Replace after removing.
- Electronic Steering Column Lock Control Module -J764-
- For vehicles with the keyless access authorization system
- Removing and Installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING, VERSION 1 .
- Bolt
- 6 Nm
- Quantity: 3
