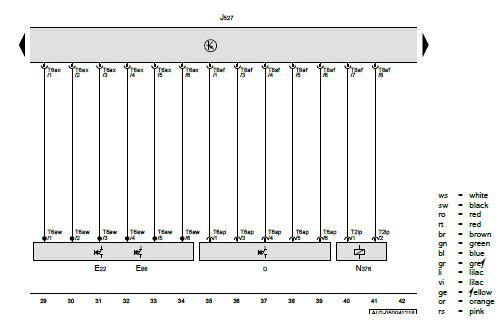

Ignition/Starter Switch, Windshield Wiper Intermittent Mode Switch, Multifunction Indicator Selection Switch, Steering Column Electronics Control Module, Ignition Switch Key Lock Solenoid

G00609073Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D -  Ignition/Starter Switch

E22 -  Windshield Wiper Intermittent Mode Switch

E86 -  Multifunction Indicator Selection Switch

J527 -  Steering Column Electronics Control Module

N376 -  Ignition Switch Key Lock Solenoid

T2ip -  2-Pin Connector

T6ap -  6-Pin Connector

T6aw -  6-Pin Connector

T6ax -  6-Pin Connector

T8af -  8-Pin Connector
