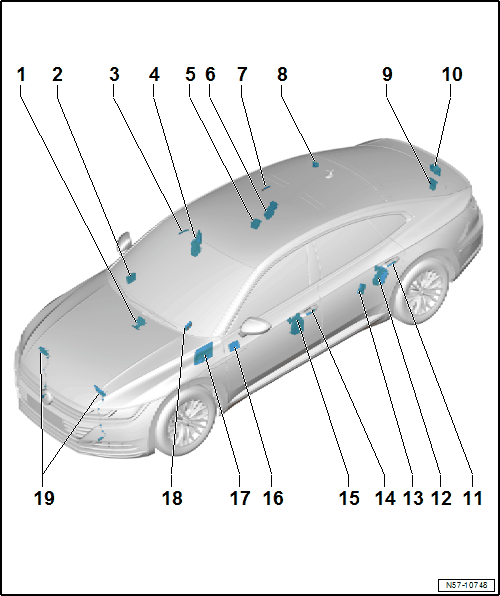

Component Location Overview - Central Locking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Alarm Horn -H12-
- Removing. Refer to ALARM HORN -H12-, REMOVING AND INSTALLING .
Front Passenger Door Control Module -J387-
- Installed separately from the window regulator motor in the door.
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Access/Start System Interface Antenna
- Installed in the door handle
- Door handle is removed and installed. Refer to DOOR HANDLE WITH KEYLESS ACCESS AUTHORIZATION SYSTEM, REMOVING AND INSTALLING .
Right Front Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Right Rear Door Control Module -J389-
- Installed separately from the window regulator motor in the door.
- Removing and Installing. Refer to Left Rear Door Control Module -J926- AND Right Rear Door Control Module -J927-, REMOVING AND INSTALLING .
Right Rear Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Access/Start System Interface Antenna
- Installed in the door handle
- Door handle is removed and installed. Refer to DOOR HANDLE WITH KEYLESS ACCESS AUTHORIZATION SYSTEM, REMOVING AND INSTALLING .
Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
Rear Lid Latch
- Component location: bolted to the rear lid
- Removing. Refer to LATCH, REMOVING AND INSTALLING .
Unlocking Element
- Component location: bolted into the rear lid
- Removing. Refer to ACTUATOR, REMOVING AND INSTALLING .
Access/Start System Interface Antenna
- Installed in the door handle
- Door handle is removed and installed. Refer to DOOR HANDLE WITH KEYLESS ACCESS AUTHORIZATION SYSTEM, REMOVING AND INSTALLING .
Left Rear Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Left Rear Door Control Module -J388-
- Installed separately from the window regulator motor in the door.
- Removing and Installing. Refer to Left Rear Door Control Module -J926- AND Right Rear Door Control Module -J927-, REMOVING AND INSTALLING .
Access/Start System Interface Antenna
- Installed in the door handle
- Door handle is removed and installed. Refer to DOOR HANDLE WITH KEYLESS ACCESS AUTHORIZATION SYSTEM, REMOVING AND INSTALLING .
Left Front Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Driver Door Control Module -J386-
- Installed separately from the window regulator motor in the door.
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Component location: under the instrument panel on the driver side
- Removing. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
Window Regulator Central Switch
- Component location: installed in the door trim panel
- Window Regulator Central Switch, Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Engine Hood Contact Switch -F266-
- Contact switch for anti-theft alarm system
- Component location: on the latch
