Threaded Bushing, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

CAUTION:

Always drive out the threaded bushing from above in the direction of the steering shaft.

-- Insert the threaded bushing in straight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive in the threaded bushing until stop.

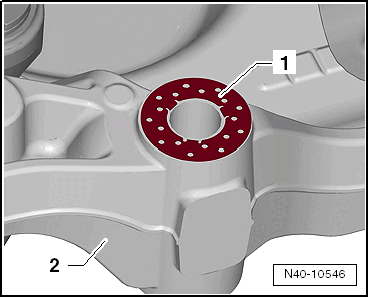

-- Always make sure the intermediate plate -1- is installed between the subframe -2- and the body.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the steering gear -1- on the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the steering gear threaded sleeves -2- into the subframe holes -arrow-.

-- For vehicles with a level control system sensor, perform the basic setting using the Vehicle Diagnostic Tester.
