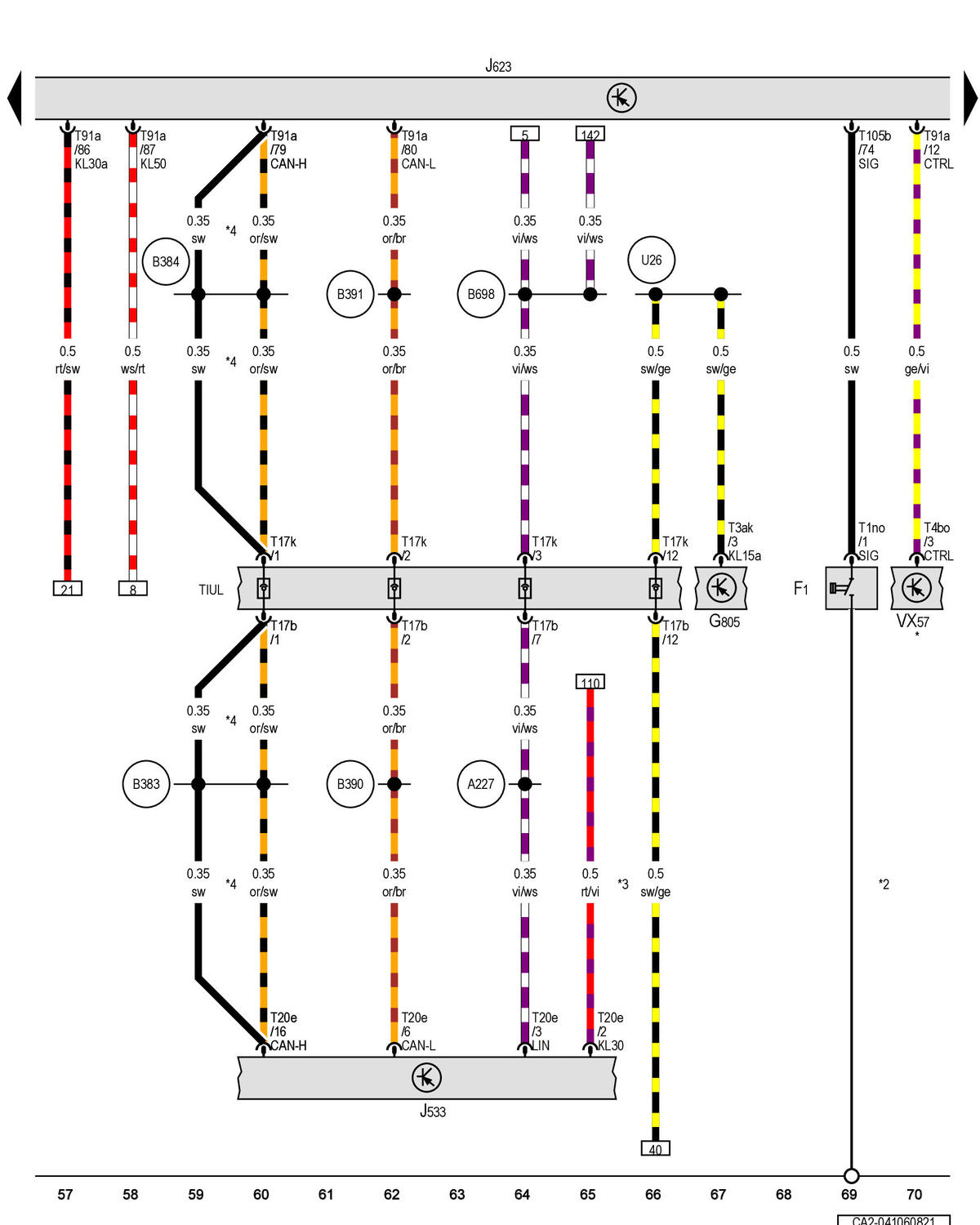

Oil Pressure Switch, Refrigerant Circuit Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Radiator Fan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Oil Pressure Switch Type:BT, Slpdok:, Aim:BTF1

G805

Refrigerant Circuit Pressure Sensor Type:BT, Slpdok:, Aim:BTG805

J533

Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T1no

1-Pin Connector, Dark Blue

T3ak

3-Pin Connector, Black

T4bo

4-Pin Connector, Black

T17b

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17b

T17k

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17k

T20e

20-Pin Connector, Black

T91a

91-Pin Connector, Black

T105b

105-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

VX57

Radiator Fan Type:BT, Slpdok:, Aim:BTVX57

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

B698

LIN Bus Connection 3 (in Main Wiring Harness)

U26

Connection 15 (in Transmission Switch Wiring Harness)

Pre-Wired Component

Ground Supply via the Housing

For Vehicles with Parking Heater Radio Receiver

Running Change
