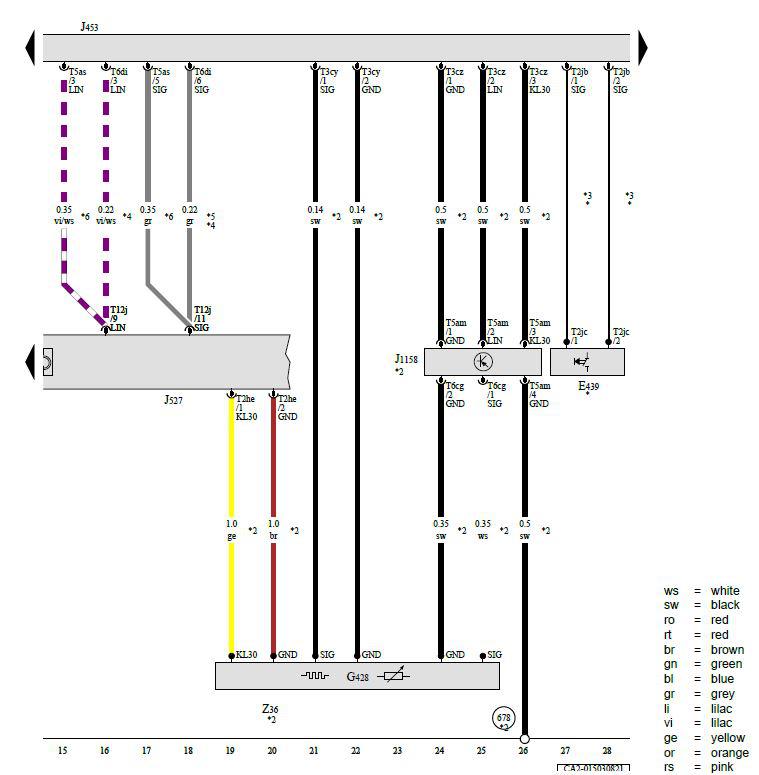

Tiptronic Downshift Button on Steering Wheel, Multifunction Steering Wheel Control Module, Steering Column Electronics Control Module, Steering Wheel Touch Recognition Control Module, Heated Steering Wheel

G00609101Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E439 -  Tiptronic Downshift Button on Steering Wheel

G428 -  Heated Steering Wheel Sensor

J453 -  Multifunction Steering Wheel Control Module

J527 -  Steering Column Electronics Control Module

J1158 -  Steering Wheel Touch Recognition Control Module

T2he -  2-Pin Connector

T2jb -  2-Pin Connector

T2jc -  2-Pin Connector, Black

T3cy -  3-Pin Connector

T3cz -  3-Pin Connector

T5am -  5-Pin Connector, Black

T5as -  5-Pin Connector, White

T6cg -  6-Pin Connector, Black

T6di -  6-Pin Connector, Black

T12j -  12-Pin Connector, Yellow

Z36 -  Heated Steering Wheel

678 -  Ground Connection on Steering Wheel

* -  For Vehicles with Tiptronic

*2 -  For Vehicles with Heated Steering Wheel

*3 -  Adapter Cable

*4 -  From March 2020

*5 -  For Vehicles with Cruise Control System

*6 -  Through March 2020
