Accelerator Pedal Module, Oxygen Sensor 2 Before Catalytic Converter, Engine/Motor Control Module

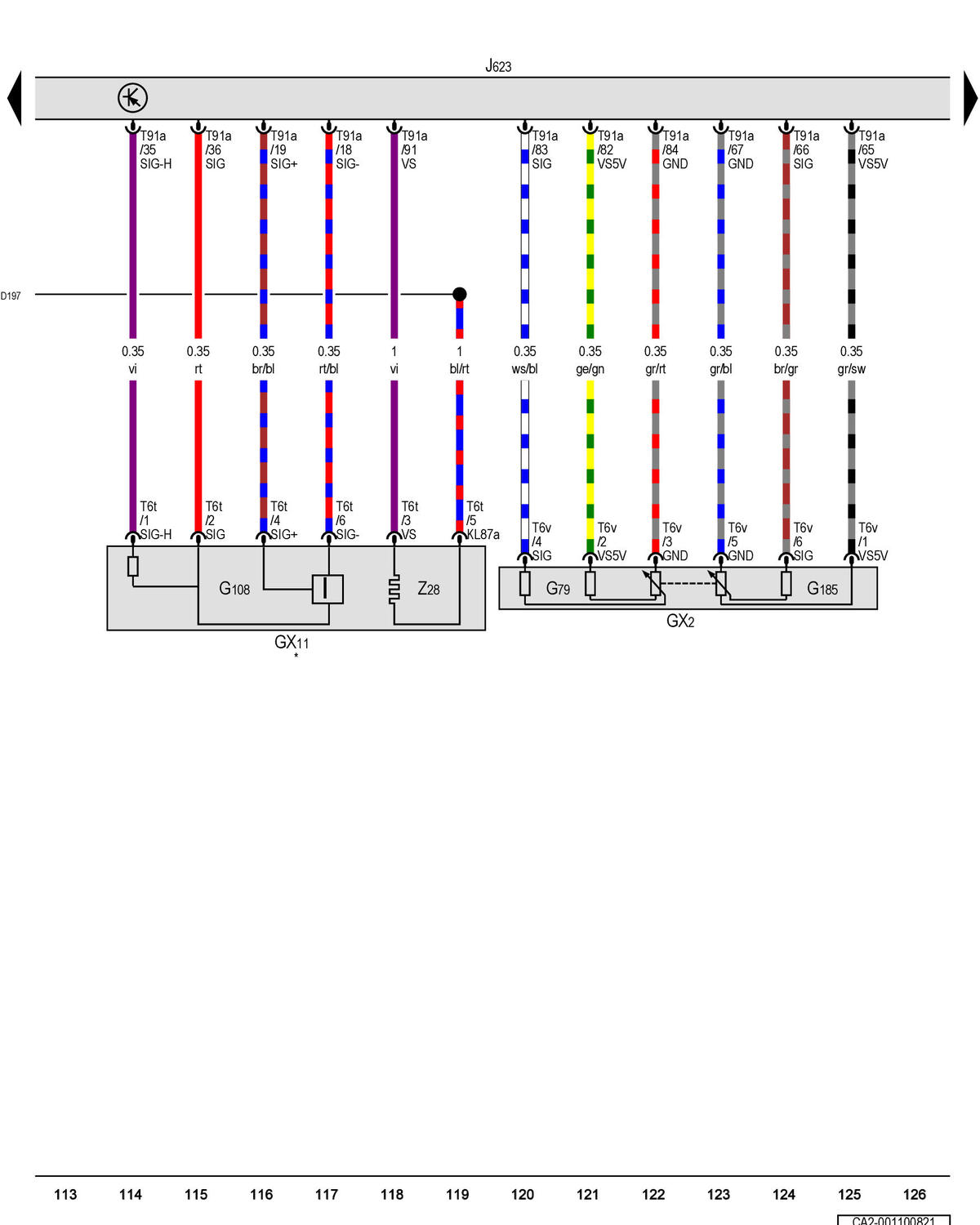

GWWCA2-001100821Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX2

Accelerator Pedal Module Type:BT, Slpdok:, Aim:BTGX2

GX11

Oxygen Sensor 2 Before Catalytic Converter Type:BT, Slpdok:, Aim:BTGX11

G79

Accelerator Pedal Position Sensor

G108

Heated Oxygen Sensor 2

G185

Accelerator Pedal Position Sensor 2

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T6t

6-Pin Connector, Brown

T6v

6-Pin Connector, Black

T91a

91-Pin Connector, Black

Z28

Oxygen Sensor 2 Heater

D197

Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)

Pre-Wired Component
