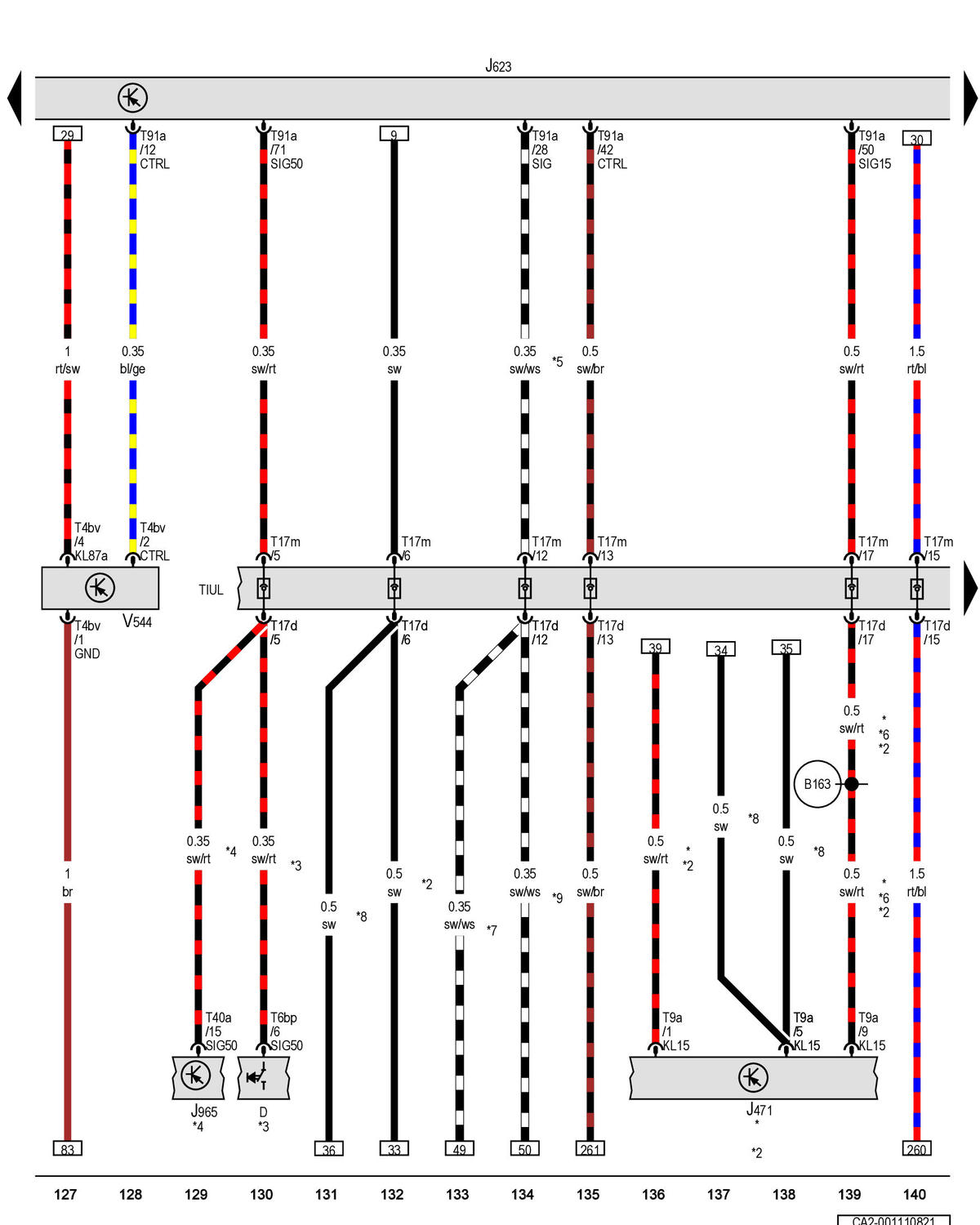

Ignition/Starter Switch, Remote Start System Relay, Engine/Motor Control Module, Access/Start System Interface, Radiator Shutter Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

J471

Remote Start System Relay Type:BT, Slpdok:, Aim:BTJ471

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

J965

Access/Start System Interface Type:BT, Slpdok:, Aim:BTJ965

T4bv

4-Pin Connector, Black

T6bp

6-Pin Connector, Black

T9a

9-Pin Connector, Gray

T17d

17-Pin Connector, Blue Type:BT, Slpdok:, Aim:BTT17d

T17m

17-Pin Connector, Blue Type:BT, Slpdok:, Aim:BTT17m

T40a

40-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

V544

Radiator Shutter Motor Type:BT, Slpdok:, Aim:BTV544

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

*

For Vehicles with Engine Remote Start

*2

For Vehicles with Engine Remote Start Setup

*3

For Vehicles Without Access/Start Authorization System

*4

For Vehicles with Access/Start Authorization System

*5

For Vehicles with Cruise Control System

*6

Refer to Applicable Wiring Diagram

*7

For Vehicles Without Heated Steering Wheel

*8

Depending on Equipment

*9

For Vehicles with Heated Steering Wheel
