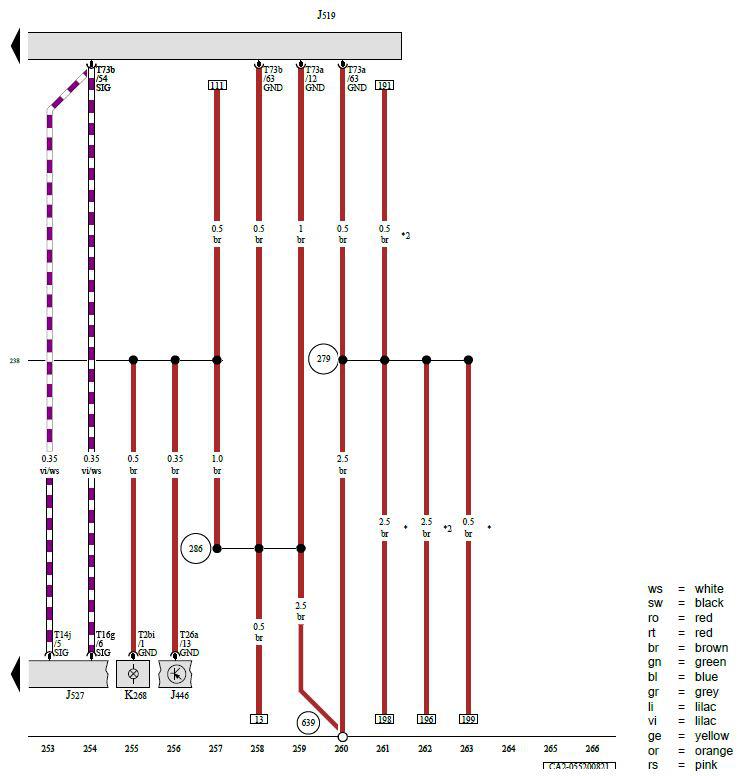

Vehicle Electrical System Control Module, Left Front Footwell Lamp
J446 - Parking Aid Control Module
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
K268 - Left Front Footwell Lamp
T2bi - 2-Pin Connector, Black
T14j - 14-Pin Connector, Black
T16g - 16-Pin Connector, Black
T26a - 26-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
238 - Ground Connection 1 (in Interior Wiring Harness)
279 - Ground Connection 5 (in Interior Wiring Harness)
286 - Ground Connection 8 (in Interior Wiring Harness)
639 - Ground Connection on Left A-Pillar
* - For Vehicles with Peripheral Camera
*2 - For Vehicles without Peripheral Camera
