Front Display And Control Head, Removing And Installing: Removing

NOTE:

The image shows a vehicle with Climatronic. Removing and installing on vehicles with an electric-manual climate control system is identical.

-- Remove the display control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

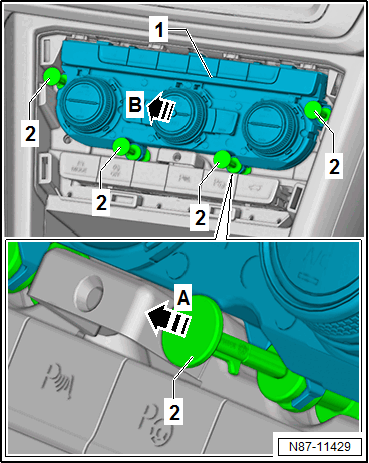

-- Push the display and control head in the direction of the instrument panel to release the expanding rivets.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expanding rivets -2- in the direction of -arrow A-.

-- Remove the display and control head -1- in the direction of -arrow B-.
