Rear Display And Control Head, Removing And Installing: Removing

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

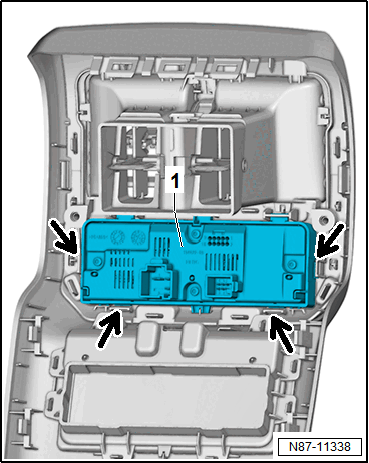

-- Unclip the display control head -1- from the retainers -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
