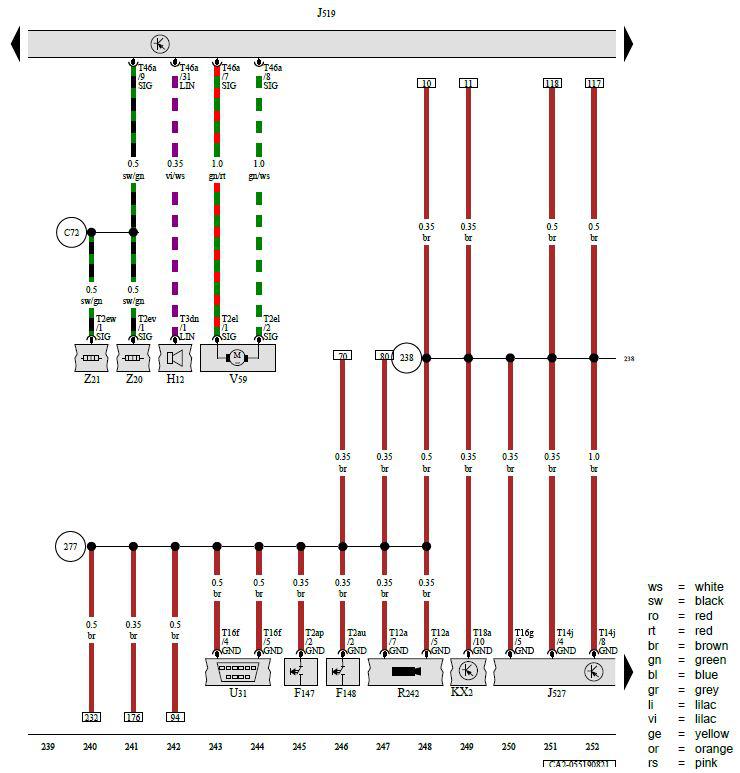

Driver Vanity Mirror Lamp Contact Switch, Front Passenger Vanity Mirror Lamp Contact Switch, Alarm Horn, Vehicle Electrical System Control Module, Instrument Cluster, Driver Assistance Systems Front Camera, Diagnostic Connection, Windshield and Rear Window Washer Pump
F147 - Driver Vanity Mirror Lamp Contact Switch
F148 - Front Passenger Vanity Mirror Lamp Contact Switch
H12 - Alarm Horn
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
KX2 - Instrument Cluster
R242 - Driver Assistance Systems Front Camera
T2ap - 2-Pin Connector, Black
T2au - 2-Pin Connector, Black
T2el - 2-Pin Connector, Black
T2ev - 2-Pin Connector
T2ew - 2-Pin Connector
T3dn - 3-Pin Connector, Black
T12a - 12-Pin Connector, Black
T14j - 14-Pin Connector, Black
T16f - 16-Pin Connector, Black
T16g - 16-Pin Connector, Black
T18a - 18-Pin Connector, Black
T46a - 46-Pin Connector, Black
U31 - Diagnostic Connection
V59 - Windshield and Rear Window Washer Pump
Z20 - Left Washer Nozzle Heater
Z21 - Right Washer Nozzle Heater
238 - Ground Connection 1 (in Interior Wiring Harness)
277 - Ground Connection 3 (in Interior Wiring Harness)
C72 - Positive Connection (in Heated Spray Nozzle Wiring Harness)
