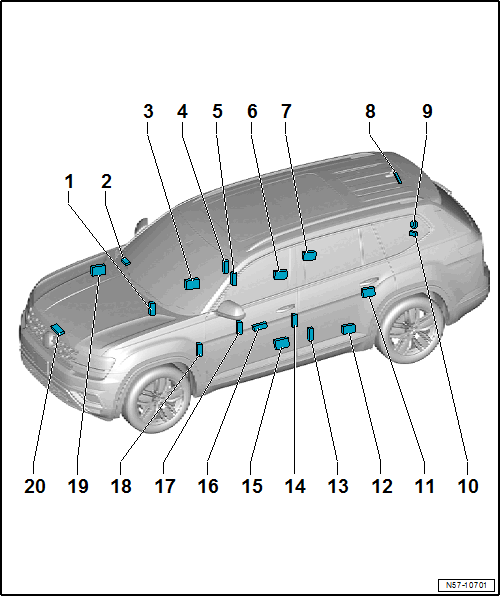

Component Location Overview - Central Locking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front Connector Station
- Component location: right A-pillar
- Loosen the boot on the pillar to disconnect the connector
Alarm Horn -H12-
- Removing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
Front Passenger Door Control Module -J387-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Right Front Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Right Rear Connector Station
- Component location: right B-pillar
- Loosen the boot on the pillar to disconnect the connector
Right Rear Door Control Module -J389-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Right Rear Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Fuel Filler Door Lock Motor -V155-
Button
- Component location: in the rear lid
- Removing. Refer to ACTUATOR, REMOVING AND INSTALLING .
Rear Lid Latch
- Component location: bolted to the rear lid
- Removing. Refer to LATCH, REMOVING AND INSTALLING .
Left Rear Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Left Rear Door Control Module -J388-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Left Rear Connector Station
- Component location: left B-pillar
- Loosen the boot on the pillar to disconnect the connector
Left Front Door Lock
- The door lock is attached to the door inner panel
- The power central locking system is integrated in the door lock
- Removing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Driver Door Control Module -J386-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Window Regulator Central Switch
- Component location: installed in the door trim panel
- Window Regulator Central Switch, Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Central Locking Button
- Component location: installed in the door trim panel
- Central Locking Button, Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Left Front Connector Station
- Component location: left A-pillar
- Loosen the boot on the pillar to disconnect the connector
Vehicle Electrical System Control Module -J519-
- Component location: under the instrument panel on the driver side
- Removing. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
Engine Hood Contact Switch -F266-
- Contact switch for anti-theft alarm system
- Component location: on the latch
- Removing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
