Key Battery, Removing And Installing, Electronic Ignition Lock: Removing

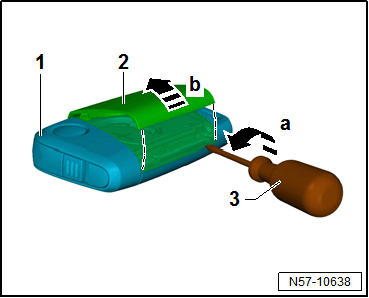

-- Using a small screwdriver -3-, lift up the battery compartment cover -2- -arrow b-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Do not turn the screwdriver -3- -arrow a-.

-- Pry up the battery -1- with a small screwdriver -3- -arrow a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the battery -1- from the battery compartment -2- -arrow b-.
