Engine Data Plate With Certification Test Group Code: Checking Presence And Condition, Such As Comparison Of CTG Codes With Engine/Motor Control Module Code

NOTE:

Only applies to USA, Canada, and Mexico.

Special tools and workshop equipment required

Bar Code Scanner: VAS 6161/1A
Vehicle Diagnostic Tester

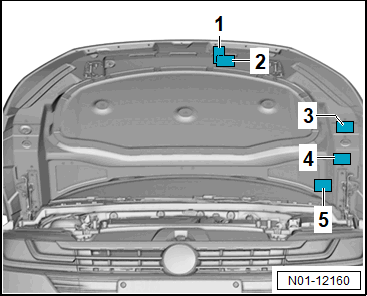

The CTG label for the Atlas is located on the inside of the engine compartment lid -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The CTG label must be present, undamaged and readable.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

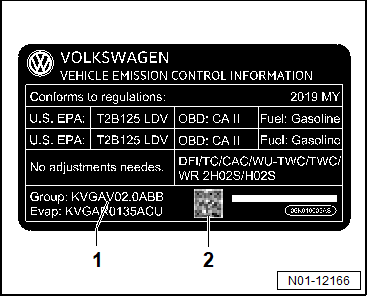

-- Scan the code on the CTG label -1- or the QR code -2- with the Bar Code Scanner: VAS 6161/1A and compare it with the code on the engine/motor control module.

If the code from the CTG label does not match the code in the control module, or this label is not readable, damaged or not present, then order a CTG label via the Parts Information.
