Electronic Steering Column Lock Control Module - J764-, REMOVING AND INSTALLING, VERSION 2: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

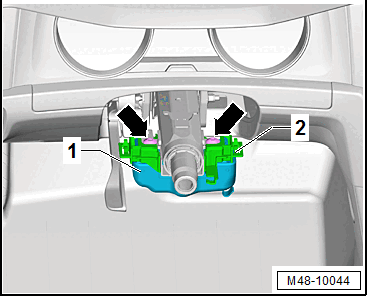

-- Secure the Electronic Steering Column Lock Control Module - J764- -1- to the mounting plate -2- with new shear bolts -arrows-.

-- Tighten the shear bolts -arrows- evenly until the bolt heads shear off.

-- If the Electronic Steering Column Lock Control Module - J764- was replaced, it must be adapted by selecting the "Replace" function on the Vehicle Diagnostic Tester in the "Guided Function"  .

-- Perform the Steering Angle Sensor -G85- basic setting using the Vehicle Diagnostic Tester.
