Overview - Steering Column Switch Module And Electronic Ignition Switch

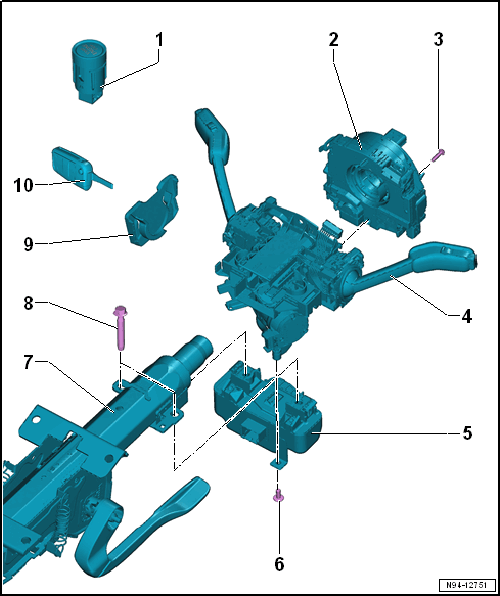

Fig 1: Exploded View Of Steering Column Switch Module & Electronic Ignition Switch Components

Courtesy of AUDI OF AMERICA, LLC

1. Start System Button -E378-
   • Removing and installing. Refer to Start System Button -E378-, REMOVING AND INSTALLING .
2. Steering Column Electronics Control Module -J527-
   • With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
   • Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
3. Bolt
   • 1 Nm
   • Quantity: 3
4. Mount
   • With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22-
   • Vehicle equipment version with cruise control system: with Cruise Control Switch -E45-
   • Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
5. Electronic Steering Column Lock Control Module -J764-
   • Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING
6. Bolt
   • Tightening specification. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
7. Steering Column
8. Bolt
   • Quantity: 2
   • For Electronic Steering Column Lock Control Module -J764- (shear bolt)
9. Anti-Theft Immobilizer Reader Coil -D2-
   • Removing and installing. Refer to Anti-Theft Immobilizer Reader Coil -D2-, REMOVING AND INSTALLING, ELECTRONIC IGNITION LOCK .
10. Ignition Key
