Overview - Windshield Washer System, With Headlamp Washer System

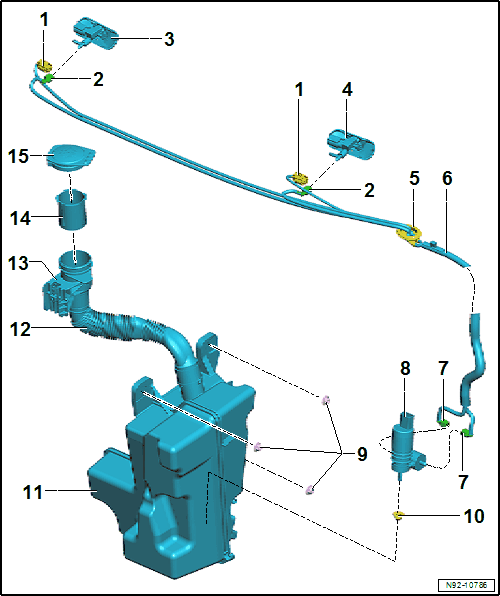

Fig 1: Exploded View of Windshield Washer System, With Headlamp Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Electric Connection
- Versions with Washer Nozzle Heater --
Hose Connection
- For the washer fluid hose
Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Grommet
- For the washer fluid hose in the front lid
Washer Fluid Hose
- For the windshield washer system
- Black color coding
Hose Connection
- For the Windshield And Rear Window Washer Pump -V59-
Windshield and Rear Window Washer Pump -V59-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Nut
- 8 Nm
- Quantity: 3
Grommet
- Replace if damaged
Washer Fluid Reservoir
- For vehicles with a headlamp washer system
- With Windshield Washer Fluid Level Sensor -G33- Cannot be replaced separately if faulty.
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
Filler Tube
- For the washer fluid reservoir
Filler Neck
- For the washer fluid reservoir
Screen
Cap
- For the filler neck
