Component Location Overview - Central Locking, Sedan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

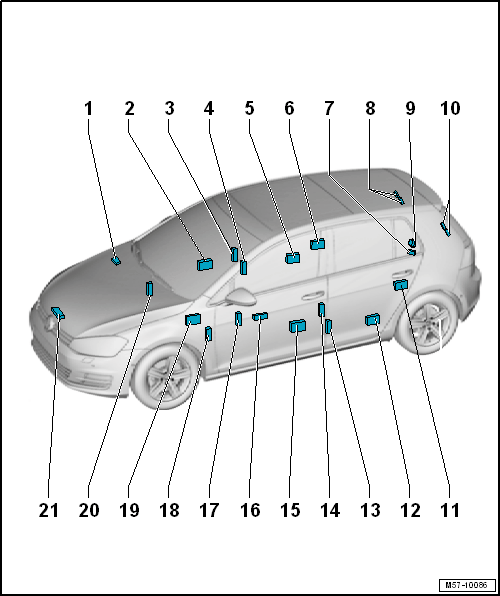

1. Alarm Horn -H12-
   • Removing and Installing. Refer to ALARM HORN/ANTI-THEFT ALARM SYSTEM HORN, REMOVING AND INSTALLING .
2. Front Passenger Door Control Module -J387-
   • Installed separately from the window regulator motor in the door.
   • Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
3. Right Front Door Lock
   • The door lock is attached to the door inner panel
   • The power central locking system is integrated in the door lock
   • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
4. Connector Station
   • Component location: right B-pillar
   • Loosen the boot on the pillar to disconnect the connector
5. Front Passenger Side Rear Window Regulator Motor Control Module -J1017-
   • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
6. Right Rear Door Lock
   • The door lock is attached to the door inner panel
   • The power central locking system is integrated in the door lock
   • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
7. Rear Lid Latch
   • Component location: bolted to the rear lid
   • Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
8. Right Rear Lid Connector Station
   • Component location: behind the C-pillar trim panel
   • Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
9. Actuator with Button
   • Component location: bolted into the rear lid
   • Removing and Installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
10. Left Rear Lid Connector Station
    • Component location: behind the C-pillar trim panel
    • Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
11. Left Rear Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
12. Driver Side Rear Window Regulator Motor Control Module -J1016-
    • Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
13. Connector Station
    • Component location: left B-pillar
    • Loosen the boot on the pillar to disconnect the connector
14. Left Front Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
15. Driver Door Control Module -J386-
    • Installed separately from the window regulator motor in the door.
    • Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
16. Window Regulator Central Switch
    • Component location: installed in the door trim panel
    • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
17. Central Locking Button
    • Component location: installed in the door trim panel
    • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
18. Connector Station
    • Component location: left A-pillar
    • Loosen the boot on the pillar to disconnect the connector
19. Vehicle Electrical System Control Module -J519-
    • Component location: under the instrument panel on the driver side
    • Removing and Installing. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
20. Connector Station
    • Component location: right A-pillar
    • Loosen the boot on the pillar to disconnect the connector
21. Engine Hood Contact Switch -F266-
    • Contact switch for anti-theft alarm system
    • Component location: on the latch
    • Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
