Abs Control Module And Abs Hydraulic Unit, Gasoline Engine, Removing And Installing: Removing

WARNING:

Do not bend the brake lines near the ABS Hydraulic Unit -N55- !

-- Read and note the present control module coding.

-- If the vehicle has a coded radio, get the radio code from the customer before beginning.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- If equipped, remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- If equipped, remove the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

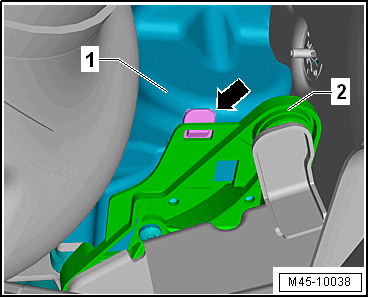

-- Unclip the heat shield -1- from the bracket -2- -arrow-.

-- Unclip the wire routing.

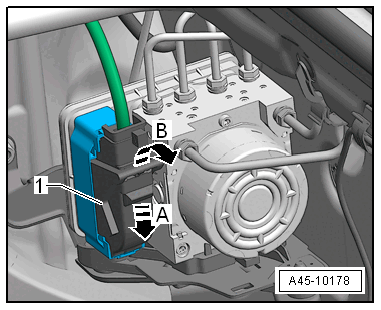

-- Push the lock washer downward in the direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the locking mechanism in the direction of -arrow B-.

-- Remove the connector -1-.

-- Install the : VAG1869/2 .

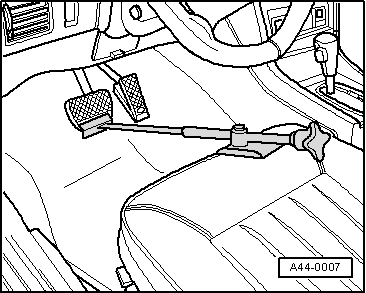

Fig 1: Identifying Brake Pedal Depressor V.A.G 1869/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

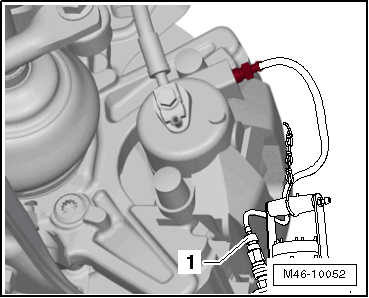

-- Attach the bleeder bottle bleed hose -1- to the left front brake caliper bleed valve.

Fig 2: Identifying Bleed Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the bleed valve.

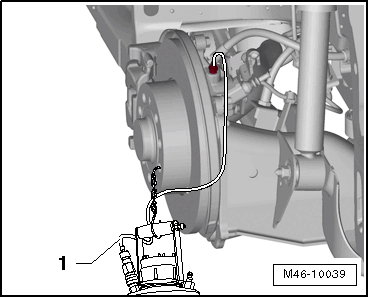

-- Attach the bleeder bottle bleed hose -1- to the left rear brake caliper bleed valve.

Fig 3: Identifying V.A.G 1869/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the bleed valve.

-- Push the brake pedal with the : VAG1869/2 at least 60 mm.

-- Close left front and left rear bleeder valves.

-- Do not remove the : VAG1869/2 .

NOTE:

Make sure no brake fluid gets onto contacts.

-- Remove the cover from the bulkhead and unclip the brake line.

-- Label both brake lines -5 and 6-.

Fig 4: Brake Lines, Attaching To Hydraulic Unit Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake lines -5 and 6- from the ABS Hydraulic Unit -N55-.

-- Close brake lines and open connections using Sealing Plugs from the Repair Kit: 1H0 698 311 A or with suitable plugs from the : VAS6122 .

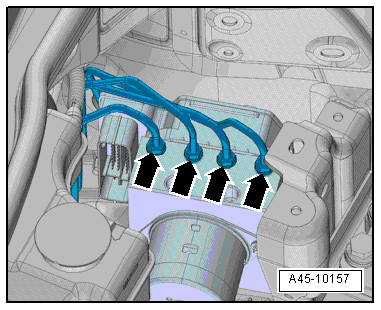

-- Label the remaining brake lines (brake caliper) -arrows- and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close brake lines and open connections using Sealing Plugs from the Repair Kit: 1H0 698 311 A or with suitable plugs from the : VAS6122 .

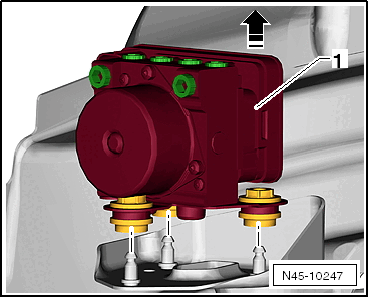

-- Pull the ABS Control Module -J104- with the ABS Hydraulic Unit -N55- upward from the shock absorber in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

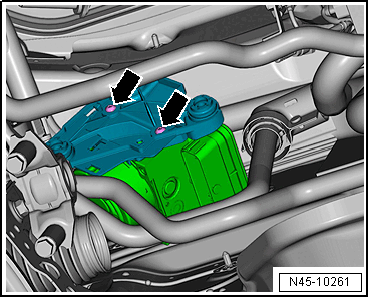

-- Remove the bracket in the vehicle from the hydraulic unit -arrows- (only on engines with too little clearance between the cross panel and engine).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
