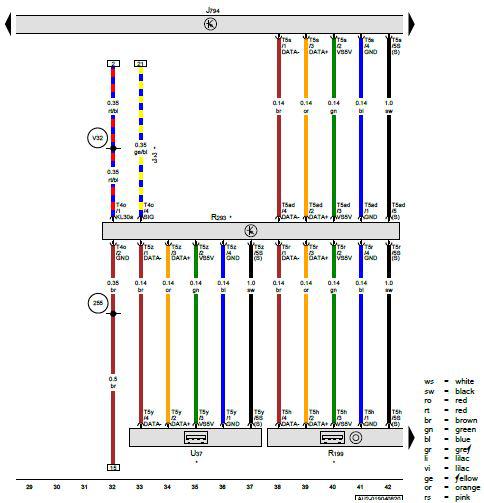

Information Electronics Control Module 1, External Audio Source Connection, USB Distributor, USB Charging Socket 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794 -  Information Electronics Control Module 1

R199 -  External Audio Source Connection

R293 -  USB Distributor

T4o -  4-Pin Connector, Red

T5ad -  5-Pin Connector

T5h -  5-Pin Connector, Green

T5r -  5-Pin Connector, Purple

T5s -  5-Pin Connector, Yellow

T5y -  5-Pin Connector, Green

T5z -  5-Pin Connector, Blue

U37 -  USB Charging Socket 1

255 -  Ground Connection 1 (in Radio Wiring Harness)

V32 -  Positive Connection (30 (in Telephone Wiring Harness)

* -  Depending on Equipment

*2 -  The Color of the Wires Depends on Vehicle Equipment

*3 -  Diameter Depends on Equipment
