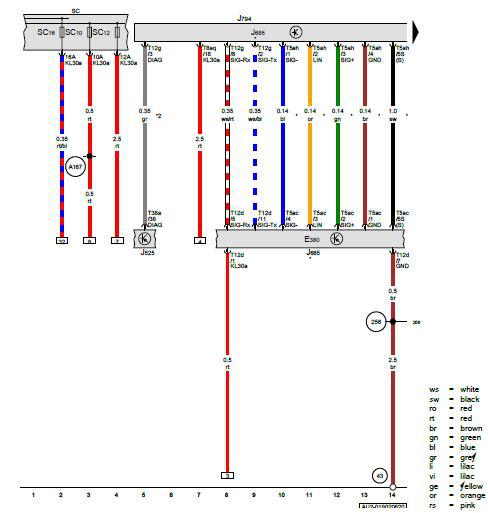

Multimedia System Control Head, Front Information Display Control Head, Information Electronics Control Module 1, Fuse Panel C
E380 - Multimedia System Control Head
J525 - Digital Sound System Control Module
J685 - Front Information Display Control Head
J794 - Information Electronics Control Module 1
SC - Fuse Panel C
SC10 - Fuse 10 (On Fuse Panel C)
SC12 - Fuse 12 (On Fuse Panel C)
SC16 - Fuse 16 (On Fuse Panel C)
T5ac - 5-Pin Connector, Black
T5ah - 5-Pin Connector, Gray
T8aq - 8-Pin Connector, Black
T12d - 12-Pin Connector
T12g - 12-Pin Connector
T38a - 38-Pin Connector, Black
43 - Ground Connection on A-Pillar, Lower Right
256 - Ground Connection 2 (in Radio Wiring Harness)
A167 - Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles with an Amplifier
