Left/Right Front Parallel Parking Assistance Sensor G568/G569, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
CAUTION:
Malfunctions could result from an incorrect or damaged decoupling spring.

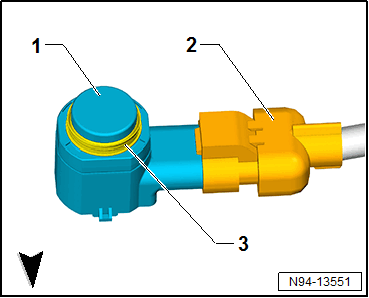

- Do not turn the decoupling spring -3- on the sensor head.
- Replace the decoupling spring -3- if it is incorrect or damaged.
-- Check the decoupling ring -3- on the sensor -1- for damage.
-- Slide the connector -2- straight onto the sensor -1- and lock it.
-- When inserting the sensor -1- into the sensor mount, make sure that the decoupling ring -3- is seated correctly on the sensor head.
-- Insert the sensor -1- straight into the sensor mount.
Requirement
- The hooks of the sensor mount must lock when installing the sensor -1-.
