Parking Aid Control Module J446, Removing And Installing: Removing

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

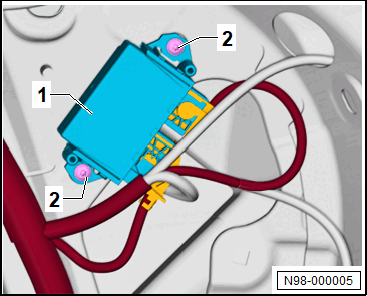

-- Remove the bolts -2- and remove the control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors.
