Driver Assistance Systems Front Camera R242, Calibrating, Static

Special tools and workshop equipment required

Setting Device - Basic Set: VAS6430/1A
Calibration Board For Lane Guard System: VAS6430/4

Preparing

Requirement

Refer to Necessity of Calibration .
There may be no DTC memory entry present because they prevent the calibration.

-- Check the camera's field of view.

If the camera can no longer recognize the lane markings due to poor visibility, this could be caused by:

Dirt or ice in the camera's field of vision.
The camera's field of vision is fogged over.

Requirement

If there is heavy contamination on the inside of the windshield in the camera's field of vision, the area must be cleaned by hand. For this, remove the camera and the lens, then clean the windshield with cleaning solution. Refer to Parts Information.

-- Pay attention to the test requirements for the axle alignment. Refer to TEST REQUIREMENTS .

-- Note the measurement preparations for an axle alignment with assistance systems. Refer to MEASUREMENT PREPARATIONS .

-- Check the camera, bracket, and retainers for damage, external influences, and secure fit.

-- Check if the floor space between the vehicle and the Setting Device Basic Set: VAS6430 is sufficient before driving the vehicle onto the wheel alignment platform.

Requirement

The distance in between the setting device and the center of the wheel hub of the front wheels must be 1500 mm ± 25 mm.

Tip

If the available floor space is not sufficient, drive the vehicle onto the wheel alignment platform backward and then use the corresponding floor space.

-- Drive the vehicle straight onto the wheel alignment platform.

-- Move the wheels into the straight position.

-- Install the quick-action clamp to the front wheels.

-- Install reflectors on the quick-action clamps.

-- Connect the Vehicle Diagnostic Tester, select the program, and follow the instructions.

-- Measure and record the height -a- at all four wheels.

Fig 1: Body Height

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The setting device must not be moved on the calibration beam.
The alignment stand must be in the lowest level position for the next step.

-- Rotate the setting device upward just enough so that the calibration beam is parallel to the center of the sensors on the front wheels.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the setting device in a distance of -a- from the center of the wheel hub of the front wheels to the beam on the setting device.

Requirement

Dimension -a- = 1500 mm ± 25 mm

-- Measure the distance -a- with the distance measuring device -1- on both sides of the vehicle and align the setting device.

Requirement

Distance -a- must be the same on both sides of the vehicle.

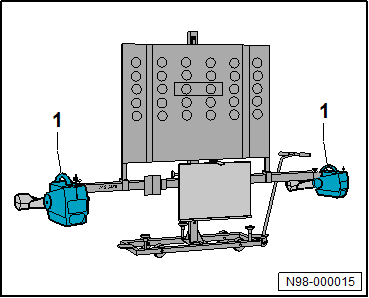

-- Attach the sensor -1- to the setting device and tighten.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The alignment stand must be in the lowest level position for the next step.

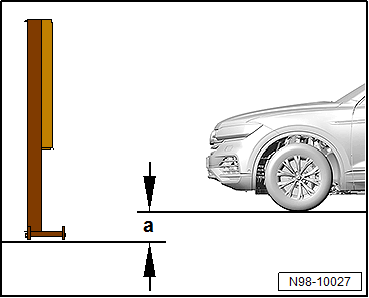

-- Determine the height value -a- between the setting device contact surface and the wheel contact surface on the wheel alignment platform.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Non SUV Vehicles:

Height of the Calibration Board For Lane Guard System: VAS6430/4 : 1200 mm + height value -a-.

Continuation

SUV Vehicles:

Height of the Calibration Board For Lane Guard System: VAS6430/4 : 1400 mm + height value -a-.

Continuation

Continuation for All Vehicles

-- Enter the determined value in the wheel alignment computer.

-- Loosen the clamping bolt -arrow- and place the measuring beam -1- on the floor.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the crank -1- to adjust the calibration board to the height specification -2- according to the wheel alignment computer and then make a note of it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the specified height is reached, slide the measurement beam -1- slightly upward and secure it with the clamping screw -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the setting device in the direction of -arrow B- until the display in the wheel alignment computer is within the tolerance range. Make sure that neither the calibration board nor the calibration beam are moved.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lightly tighten the adjusting screws -2 and 3- and secure the setting device so that it does not roll.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the adjusting screw -1- until the display on the wheel alignment computer is within the tolerance range.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the bubble level -A- using the adjustment screw -1- and the bubble level -B- using the adjustment screws -2 and 3-, until the calibration board is level.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamping bolt -arrow- and place the measuring beam -1- on the floor.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the specified height -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

If the specified height is different, adjust with the crank -1-.

-- If the specified height is reached, slide the measurement beam -1- slightly upward and secure it with the clamping screw -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Calibrating

Requirement

Vehicle Diagnostic Tester connected.

-- Perform the "driver assistance systems front camera calibration" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
