Left And Right Rear Door Control Module J926/J927, Removing And Installing: Removing

-- Perform the "Control module, replacing" function with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

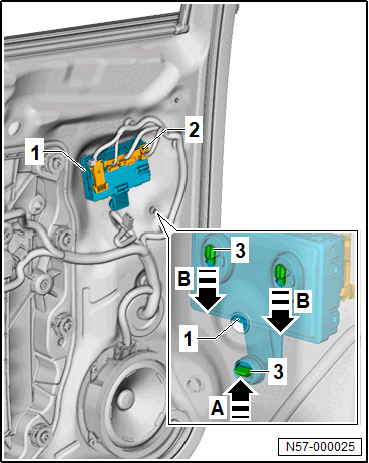

-- Disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -3- in the -direction of the arrow A-.

-- Push the door control module -1- in the -direction of the arrow B- and remove.
