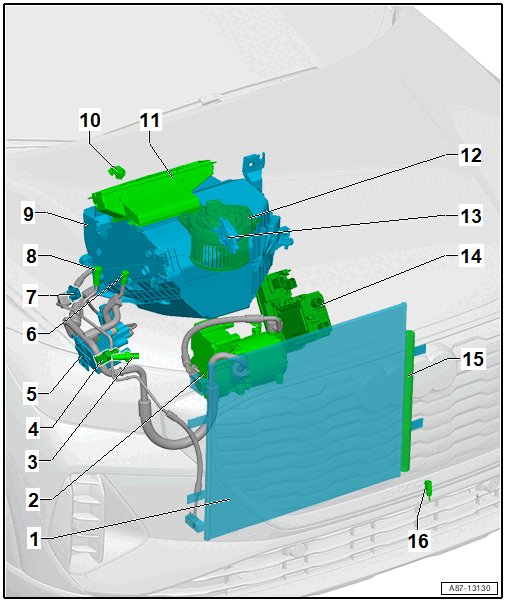

Component Location Overview - Components Outside Of Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Condenser
   • Refer to Overview - Condenser  .
   • Refer to CONDENSER/GAS COOLER, REMOVING AND INSTALLING, R1234YF  / CONDENSER/GAS COOLER, REMOVING AND INSTALLING, R744  .
2. A/C Compressor -VX81-
   • With A/C Compressor Control Module -J842-
   • With Electrical A/C Compressor -V470-
   • Refer to Overview - A/C Compressor  .
   • Refer to A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING, R1234YF  / A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING, R744  .
3. Refrigerant Circuit Pressure Sensor -G805-
   • Refer to REFRIGERANT CIRCUIT PRESSURE SENSOR -G805-, REMOVING AND INSTALLING, R1234YF  .
4. A/C Pressure/Temperature Sensor -G395-
   • Refer to A/C PRESSURE/TEMPERATURE SENSOR -G395-, REMOVING AND INSTALLING, R1234YF  / A/C PRESSURE/TEMPERATURE SENSOR G395, REMOVING AND INSTALLING, R744  .
5. High-Voltage Battery Heat Exchanger
   • with Refrigerant Expansion Valve 1 -N636-
   • Refer to HIGH-VOLTAGE BATTERY HEAT EXCHANGER, REMOVING AND INSTALLING, R1234YF  / HIGH-VOLTAGE BATTERY HEAT EXCHANGER, REMOVING AND INSTALLING, R744  .
6. Evacuating and Charging Valve
   • Low-pressure side
   • Refer to EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDE, REMOVING AND INSTALLING, R1234YF  / EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDE, REMOVING AND INSTALLING, R744  .
7. Heater and A/C Unit Refrigerant Shut-Off Valve -N541-
   • Refer to HEATER AND A/C UNIT REFRIGERANT SHUT-OFF VALVE -N541-, REMOVING AND INSTALLING  .
8. Evacuating and Charging Valve
   • High-pressure side
   • Refer to EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDE, REMOVING AND INSTALLING, R1234YF  / EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDE, REMOVING AND INSTALLING, R744  .
9. Heater and A/C Unit Air Intake Housing
   • Refer to Overview - Heater and A/C Unit Air Intake Housing  .
   • Refer to Heater and A/C Unit Air Intake Housing, Removing and Installing  .
10. Exterior Air Quality and Humidity Sensor -G935-
    • Refer to EXTERIOR AIR QUALITY AND HUMIDITY SENSOR G935, REMOVING AND INSTALLING  .
11. Fresh Air Intake
    • Refer to Fresh Air Intake, Removing and Installing  .
12. Fresh Air Blower Control Module -J126-
    • Refer to Overview - Heater and A/C Unit Air Intake Housing  .
    • Refer to Fresh Air Blower Control Module -J126-, Removing and Installing  .
13. Actuator for Fresh and Air Recirculation Door -VX96-
    • Refer to Overview - Heater and A/C Unit Air Intake Housing  .
    • Refer to ACTUATOR FOR FRESH AND AIR RECIRCULATION DOOR -VX96-, REMOVING AND INSTALLING  .
14. Heating Element (PTC) 3 -Z132-
    • Refer to OVERVIEW - HIGH-VOLTAGE HEATER (PTC), REAR WHEEL DRIVE  / OVERVIEW - HIGH-VOLTAGE HEATER (PTC), AWD  .
    • Refer to HEATING ELEMENT (PTC) 3 -Z132-, REMOVING AND INSTALLING, RWD  / HEATING ELEMENT (PTC) 3 -Z132-, REMOVING AND INSTALLING, AWD  .
15. Desiccant Bag
    • Refer to Overview - Condenser  .
    • Refer to DESICCANT BAG/DRYER, REMOVING AND INSTALLING, R1234YF  / DESICCANT BAG/DRYER, REMOVING AND INSTALLING, R744  .
16. Outside Air Temperature Sensor -G17-
    • Refer to Outside Air Temperature Sensor G17, Removing and Installing  .
