Component Location Overview - Central Locking

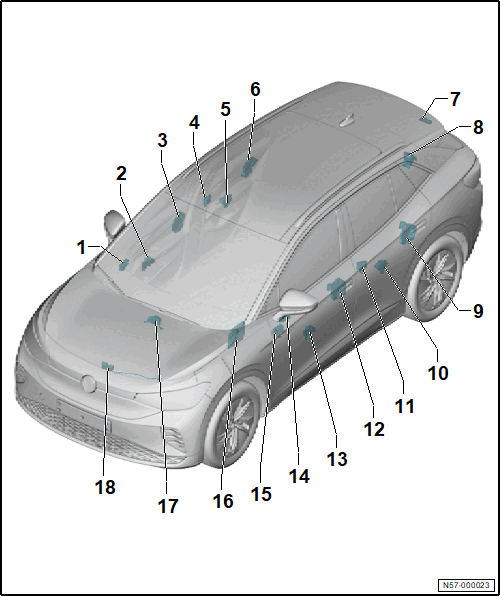

The overview shows an LHD vehicle as an example.
- Front Passenger Door Control Module -J387-
- Front Passenger Window Regulator Motor -V148-
- Front Passenger Door Lock Unit -VX22-
- with Front Passenger Door Contact Switch - F3-
- With Front Passenger Central Locking Lock Unit - F221-
- With Front Passenger Door Central Locking -Safe- Function Actuator -F244-
- With Front Passenger Door Central Locking System Motor -V57-
- With Front Passenger Central Locking -Safe- Motor -V162-
- Refer to Overview - Door Handle and Door Lock .
- Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING .
- Passenger Side Rear Door Control Module -J927-
- Passenger Side Rear Window Regulator Motor -V472-
- Passenger Side Rear Door Lock Unit -VX84-
- with Passenger Side Rear Door Contact Switch -F506-
- With Passenger Side Rear Central Locking Lock Unit -F436-
- With Passenger Side Rear Central Locking System Actuator -F510-
- With Passenger Side Rear Central Locking System Motor -V540-
- With Passenger Side Rear Door Central Locking -Safe- Motor -V538-
- Refer to Overview - Door Handle and Door Lock .
- Refer to DRIVER/PASSENGER SIDE REAR DOOR LOCK UNIT VX83/VX84, REMOVING AND INSTALLING .
- Rear Lid Handle
- With Release Button in Rear Lid Handle -E234-
- Depending on the equipment/version with Rearview Camera -R189- or Rear Peripheral Camera -R246-
- Refer to Overview - Rear Lid .
- Refer to Rear Lid Handle, Removing and Installing .
- Rear Lid Lock Unit -VX25-
- Refer to Overview - Rear Lid .
- Refer to OVERVIEW - ELECTRIC REAR LID RELEASE .
- Driver Side Rear Door Lock Unit -VX83-
- with Driver Side Rear Door Contact Switch -F505-
- With Driver Side Rear Central Locking Lock Unit - F435-
- With Driver Side Rear Central Locking System Actuator -F509-
- With Driver Side Rear Central Locking System Motor -V539-
- With Driver Side Rear Door Central Locking -Safe- Motor -V537-
- Refer to Overview - Door Handle and Door Lock .
- Refer to DRIVER/PASSENGER SIDE REAR DOOR LOCK UNIT VX83/VX84, REMOVING AND INSTALLING .
- Driver Side Rear Window Regulator Motor -V471-
- Driver Side Rear Door Control Module -J926-
- Driver Door Lock Unit -VX21-
- with Driver Door Contact Switch - F2-
- With Driver Central Locking Lock Unit -F220-
- With Driver Lock Cylinder Contact Switch -F241-
- With Driver Door Central Locking -Safe- Function Actuator -F243-
- With Driver Door Central Locking System Motor -V56-
- With Driver Door Central Locking -Safe- Motor - V161-. Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK .
- Refer to DRIVER/FRONT PASSENGER DOOR LOCK UNIT VX21/VX22, REMOVING AND INSTALLING .
- Driver Window Regulator Motor -V147-
- Power Window Control Head in Driver Door -EX36-
- Driver Door Control Module -J386-
- Vehicle Electrical System Control Module -J519-
- Alarm Horn -H12-
- Refer to OVERVIEW - INTERIOR MONITORING .
- Refer to ALARM HORN H12, REMOVING AND INSTALLING .
- Hood Latch
- With Engine Hood Contact Switch -F266-
- Refer to Overview - Hood .
- Refer to Hood Latch, Removing and Installing .
