Driver And Front Passenger Door Control Module J386/J387, Removing And Installing: Removing

If the door control module is replaced, the test plan to replace the control module must be performed:

-- Perform the "Control module, replacing" function with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

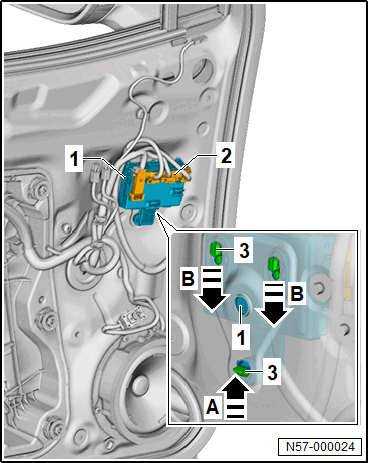

-- Disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -3- in the -direction of the arrow A-.

-- Push the door control module -1- in the -direction of the arrow B- and remove.
