Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

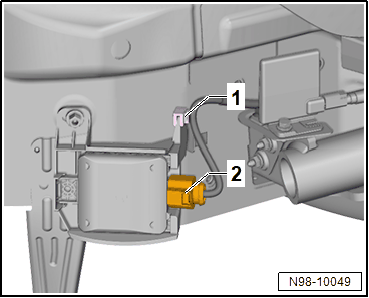

-- Disengage the wiring harness -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

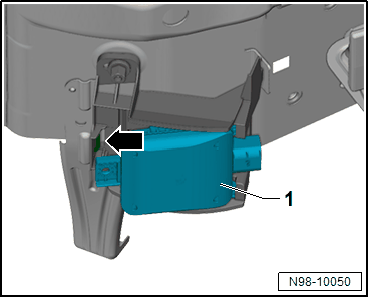

-- Release the retainer -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control module -1-.

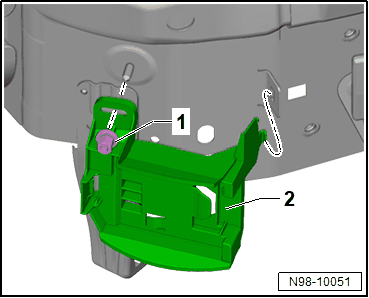

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2-.
