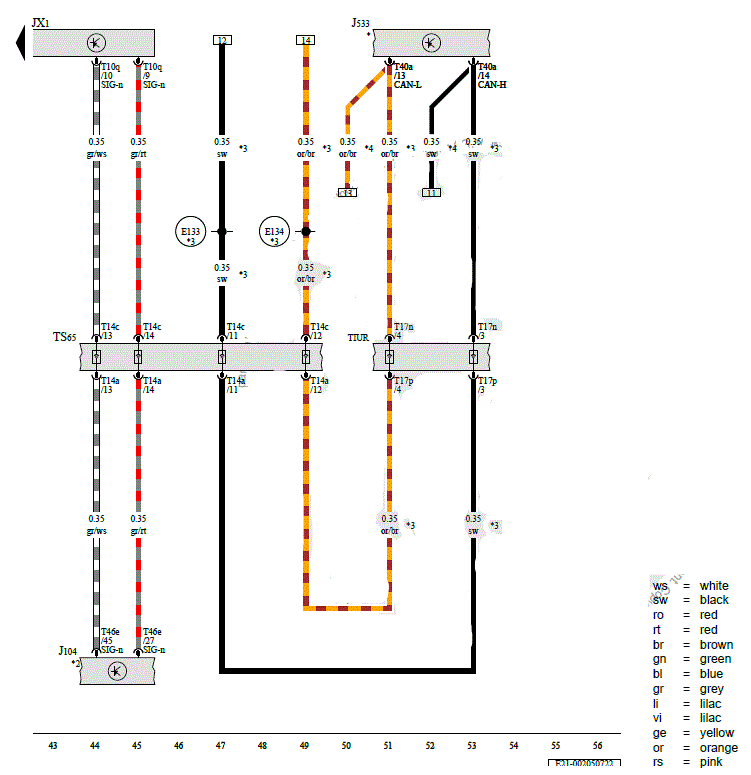

Electric Drive Power And Control Electronics, Abs Control Module, Data Bus On Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

JX1

Electric Drive Power and Control Electronics Type:BT, Slpdok:, Aim:BTJX1

J104

ABS Control Module Type:BT, Slpdok:, Aim:BTJ104

J533

Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

T10q

10-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT10q

T14a

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14a Type:VA, Slpdok:, Aim:VAT14a

T14c

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14c Type:VA, Slpdok:, Aim:VAT14c

T17n

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17n Type:VA, Slpdok:, Aim:VAT17n

T17p

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17p Type:VA, Slpdok:, Aim:VAT17p

T40a

40-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT40a Type:VA, Slpdok:, Aim:VAT40a

T46e

46-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT46e

TIUR

Coupling Point in Interior, Bottom Right

TS65

Front Suspension Coupling Point

E133

CAN Bus Drive High Connection 6 (in Engine Wiring Harness)

E134

CAN Bus Drive Low Connection 6 (in Engine Wiring Harness)

*

Refer to the Applicable Powertrain CAN Bus Network Data Bus Wiring Diagram

*2

Refer to Applicable Brake System Wiring Diagram

*3

For AWD Vehicles

*4

For Rear Wheel Drive Vehicles
