Left/Right Front Parallel Parking Assistance Sensor G568/G569, Removing And Installing: Removing

-- Loosen the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

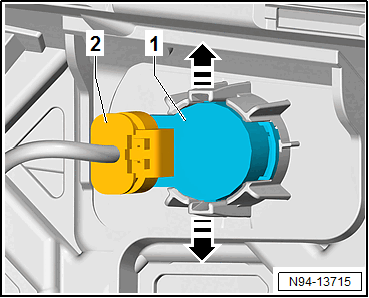

-- Press the hook in the direction of -arrow- and at the same time press the sensor -1- from the outside to the inside.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2- and remove it straight off the parallel sensor -1-.

-- Remove the sensor -1-.
