Driver Information System Control Module With Display Unit J1254, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
If the display unit is replaced, the test plan for replacing the display unit must be performed.
-- Perform the function "driver information system display unit, replacing" using the Vehicle Diagnostic Tester. Refer to the appropriate Service Information .
Continuation
-- Position the steering wheel as far back and down as possible. Use the entire adjustment range of the steering column adjustment for this.
-- Remove the gap cover for the instrument cluster. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

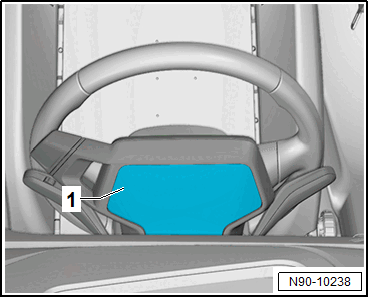

-- Unclip the trim -1- using a commercially available plastic wedge.

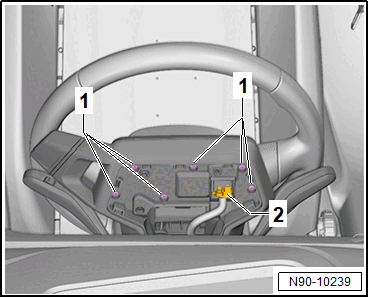

-- Disconnect the connector -2-.
-- Secure the display unit against falling out.
-- Remove the bolts -1-.
-- Remove the display unit.
