Windshield Projection Head Up Display Control Module J898, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

If the control module is being replaced.

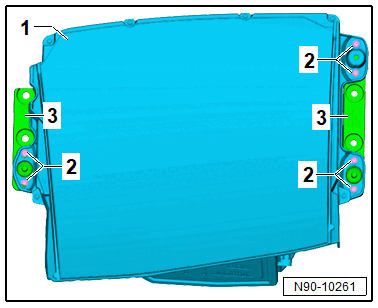

-- For new parts, remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the adjusting element plates -3- from the control module -1-.

Continuation for all vehicles

CAUTION:

Risk of destroying the windshield projection control module.

- When inserting, never apply pressure on the housing upper section.

- A windshield projection control module that has been dropped needs to be replaced.

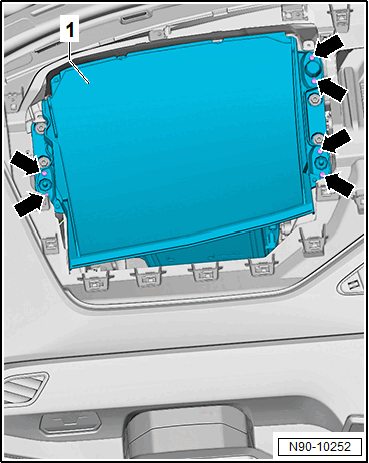

-- Insert the control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connectors.

-- Tighten the bolts -arrows-.

-- Place the windshield and secure with adhesive tape, but do not bond.

-- Switch the ignition on.

-- Perform a function test.

-- Install the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

-- Calibrate the control module. Refer to Windshield Projection Head Up Display Control Module J898, Calibrating .
