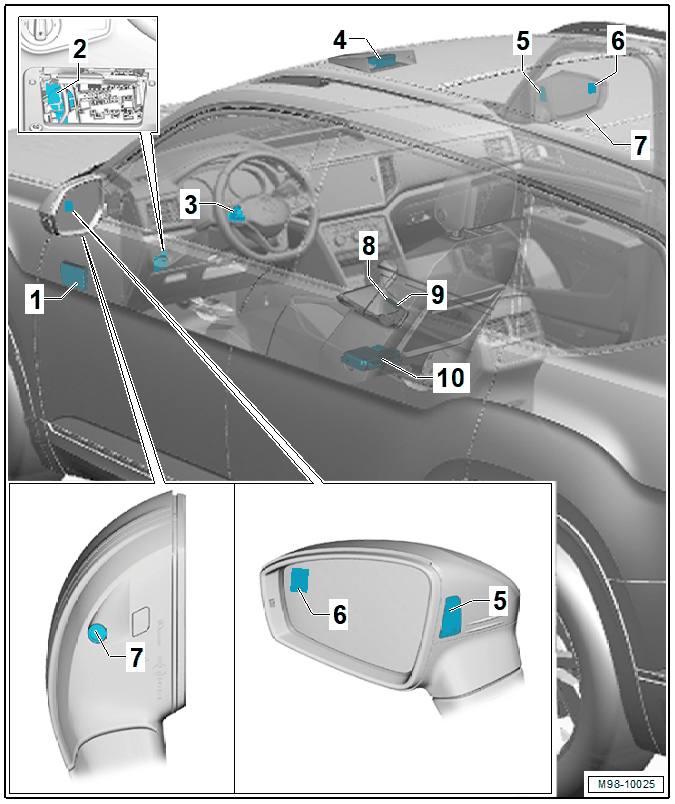

Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Parking Aid Control Module -J446-
- Depending on the vehicle equipment with:
- Parallel Parking Assistance Control Module -J791-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING
Front Parking Aid Warning Buzzer -H22-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING
Adaptive Cruise Control Button
- Refer to ADAPTIVE CRUISE CONTROL (ACC)
- Refer to RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- /LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E440-, REMOVING AND INSTALLING .
Driver Assistance Systems Front Camera -R242-
- Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA
- Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING
- Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING
Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Refer to LANE CHANGE ASSISTANCE
- Refer to Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-, REMOVING AND INSTALLING
Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303- /Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
- Refer to BLIND SPOT DETECTION
- Refer to Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303- /Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-, REMOVING AND INSTALLING
Left Peripheral Camera -R244- / Right Peripheral Camera -R245-
- Refer to PERIPHERAL CAMERA
- Refer to Left Peripheral Camera -R244- / Right Peripheral Camera -R245-, REMOVING AND INSTALLING
- Refer to PERIPHERAL CAMERA, CALIBRATING
Parking Aid Button
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
Parallel Parking Assistance Button
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
Peripheral Camera Control Module -J928-
- Refer to PERIPHERAL CAMERA
- Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING
- Refer to PERIPHERAL CAMERA, CALIBRATING
