00 General, Technical Data: Causes: Components

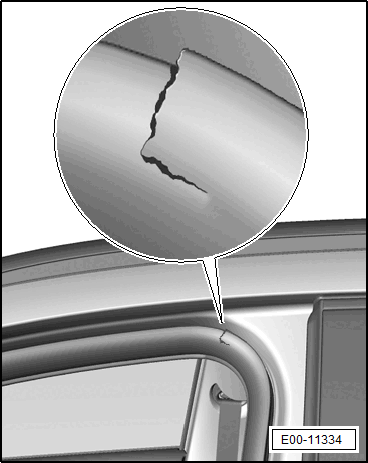

Damaged seals for example on the doors and lids.

Fig 1: Check For Damaged Seals On Doors And Lids

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

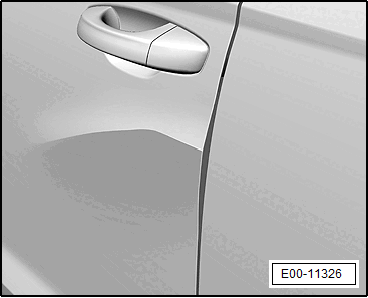

Faulty adjusted doors, lids, window glass and sunroof panel.

Fig 2: Check Alignment Of Doors, Lids, Window Glass And Sunroof

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

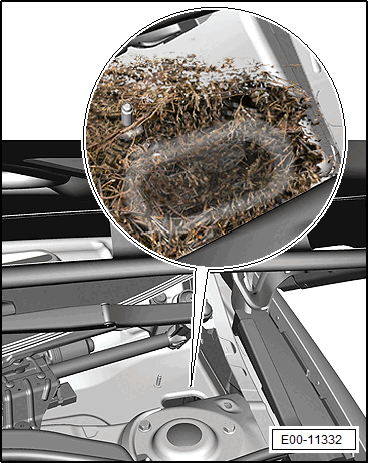

Via leaves and flowers in the afflicted water drains.

Fig 3: Check For Leaves And Debris In Water Drains

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

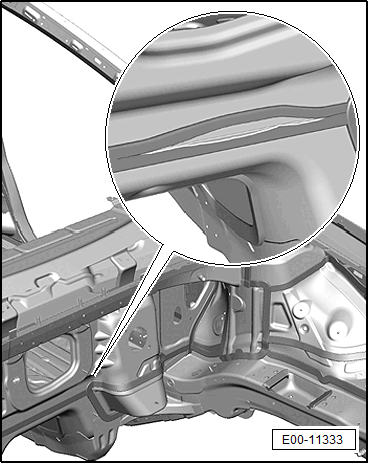

Forgotten sealant, not fitting seals

Fig 4: Check For Missing Sealant

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

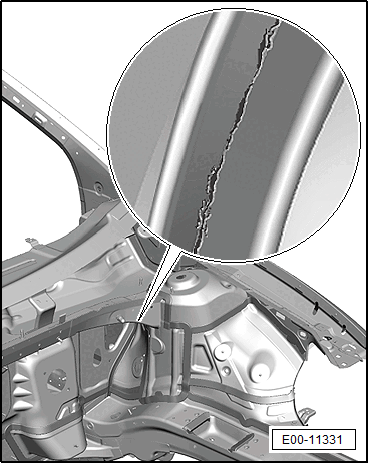

An improper repair of accident damage, incorrectly welded areas, burned through weld points or weld seams.

Fig 5: Check For Improper Repairs, And Incorrectly Welded Areas

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

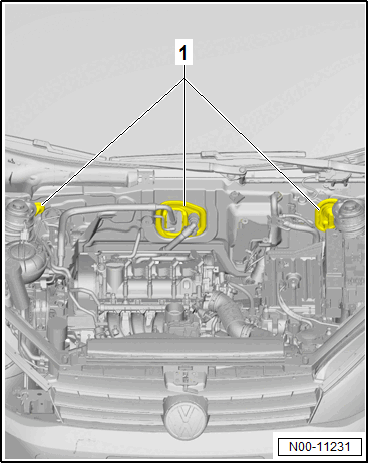

Plugs and grommets -1- that were not properly or completely installed.

Fig 6: Engine Compartment Grommet Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional possibilities for a water leak:

• Customer operating error.
• Additional installation, removal or customization.
• Production faults such as missing fine-seam sealant in the body area such as faulty welding and boding that is not clean.
• Constructional properties, not technically changeable (for example missing gutter) These should be explained to the customer.
• Aging or wear of seals and sealant.
