00 General, Technical Data: Systems: Checklist

Protocol for Locating Water Leaks
Vehicle data: (filled out together with the vehicle user)
Item no.:   Brand:   Production date:
Date:   Status:   Car dealer:
Vehicle Identification Number (VIN)   Model
Engine type:   Mileage:   Retrofittings:
Transmission type:   Service technician:
Was a vehicle inspection performed? Was the customer complaint confirmed?   Yes Yes _ _    No No _ _

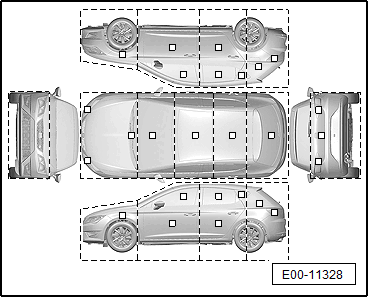

Mark in the Image the Area Where the Water is Located

Fig 1: Water Leaks System Checklist
GWWE00-11328Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Since when has this water leak occurred? ___km   Always _  Recently _
Increasingly _  Since and accident _  Since work on the vehicle _
The area affected by the procedures or the collision _________________________
Vehicle history
Components were retrofitted by the workshop or the customer.Which? __________________________________________ Yes _  No _
Vehicle was in an accident.Which part of the vehicle affected? ______________________________________ Yes _  No _
The vehicle is parked under trees or other vegetationYes_ No_
Circumstances under which the water leak occurs
External Internal
Heavy rainfallContinuous rainfallFrequent rainfallDrizzle (light rainfall) _ _ _ _  Switch on the windshield wiper.Switch on the rear window wiper.Turn on the heating.Turn on the A/C system. _ _ _ _
Washer system brushesHand car washRain and speedIn each of the determined situations _ _ _ _
Associated with existing faults
Noise generation _  Damaged Window Glass _
Whistling sounds due to air entry _  Collection of leaves in the plenum chamber area. _
Poor Radio Reception _
Amount of Water Water puddles on the floor _  Moist Floor _
Water Quality
Rain Water _  Tap Water (Washer System) _  Washer Fluid _  Coolant _
Can the responsible component/source of the water leak be located?
Left Headlamp _  Right Headlamp _  Left Front Wheel Housing _  Right Front Wheel Housing _
Plenum Chamber _  Windshield _  Left Front Vehicle Interior Floor _  Right Front Vehicle Interior Floor _
Left Front Door _  Right Front Door _  Front Door Window _  Panorama Sunroof _
Roof Antenna _  Left Rear Door _  Right Rear Door _  Rear Door Window _
Fixed Left Side Window _  Fixed Right Side Window _  Left Side Window _  Right Side Window _
Left Rear Vehicle Interior Floor _  Right Rear Vehicle Interior Floor _  Rear Lid _  Rear Window _
Left Rear Wheel Housing Liner _  Right Rear Wheel Housing _  Left Rear Lamps _  Right Rear Lamps _
Luggage Compartment _  Radiator _  AC Evaporator Water Drain _  Rear Windshield Wiper System Leaking Line _
Door Seal _  Windowpane _  Lock _  Cap _
Blocked Water Drain _  Holes _  High-Mounted Brake Lamp _  other... _
Which? ______________________________________________________________________
Comments:
