Front Motor, Installing, LHD

WARNING: This page is about a different car, the 2023 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Device (ID.4):VAS 501 021
Shop Crane:VAS 6100

The Three-Phase Current Drive 2 -VX97- with the Electric Drive Power and Control Electronics 2 -JX4- will be called motor in the information that follows.

Installing

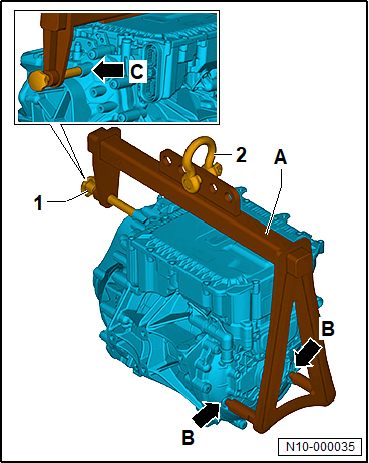

-- Insert the bracket -A- into the holes -arrows B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolt -1- all the way in the hole -arrow C- hand-tight.

-- Secure the shackle -2- in the center hole.

-- Engage the Shop Crane:VAS 6100 in the shackle -2-.

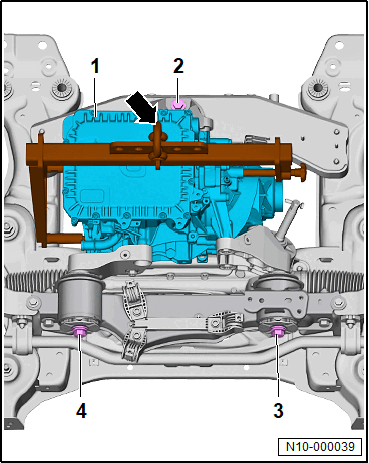

-- Position the motor -1- with the workshop crane on the subframe in the installation position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the motor support and transmission mount and install the bolts -3- and -4- all the way.

-- Tighten the bolt -2-.

-- Tighten the bolts -3- and -4-.

-- Remove the Lifting Device (ID.4):VAS 501 021 -arrow-.

Further installation is performed in reverse order of removal, while noting the following:

-- Install the subframe with the motor. Refer to SUBFRAME WITH MOTOR, REMOVING AND INSTALLING .

Tightening Specifications

Refer to Overview - Front Motor .
