Overview - Windshield Washer System, Without Headlamp Washer System

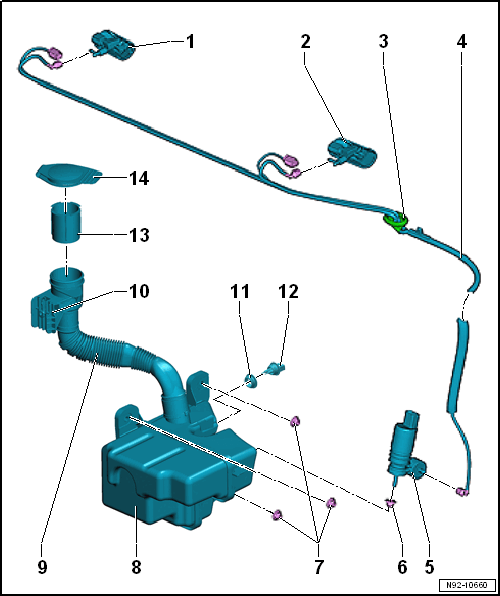

Fig 1: Exploded View Of Windshield Washer System, Without Headlamp Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Washer Nozzle
   • Versions with Right Washer Nozzle Heater -Z21-
   • Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
2. Left Washer Nozzle
   • Versions with Left Washer Nozzle Heater -Z20-
   • Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
   • Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
3. Grommet
   • For the washer fluid hose in the front lid
4. Washer Fluid Hose
   • For the windshield washer system
   • Black color coding
5. Windshield and Rear Window Washer Pump -V59-
   • Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
6. Grommet
   • Replace if damaged.
7. Nut
   • 8 Nm
   • Quantity: 3
8. Washer Fluid Reservoir
   • For vehicles without a headlamp washer system
   • Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
9. Filler Tube
   • For the washer fluid reservoir
10. Filler Neck
    • For the washer fluid reservoir
11. Seal
12. Windshield Washer Fluid Level Sensor -G33-
    • Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
13. Screen
14. Cap
    • For the filler neck
