Ignition Key Cap, Removing And Installing, Electronic Ignition Lock: Installing
NOTE:

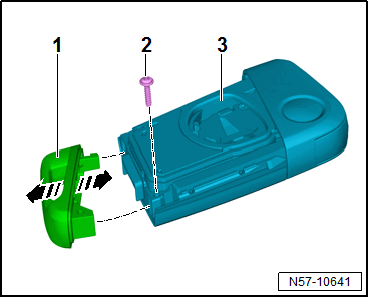

The threads for a new cap are cut in by the screw -2-.
-- Push the cap -1- on the radio-frequency unit -3- in direction of the -arrow-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Install the bolt -2-.
-- Push on the battery compartment cover.
