Key Battery, Removing And Installing, Electronic Ignition Lock: Installing

NOTE:

Before installing the battery, one of the buttons must be pushed.

This resets the radio-frequency unit, and it can now recognize the new battery.

Note the polarity and installation position when installing the battery. The positive terminal is marked.

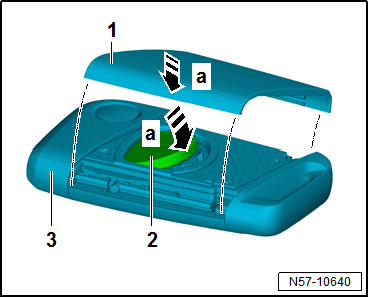

-- Insert the battery -2- by pressing it lightly in direction of -arrow a- into the battery compartment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the battery compartment cover -1- and the radio-frequency unit -3- together in direction of -arrow a-.

Ignition Key, Adapting

NOTE:

A new ignition key is adapted with the Vehicle Diagnostic Tester.
